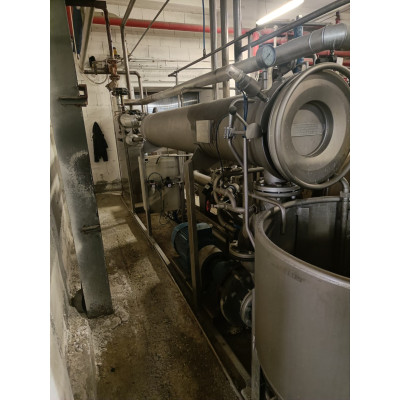

Ref.677 - THIES SOFT TRD jet dyeing machine n. 2 ropes, high temperature, HT 300 Kg
- Brand: THIES (made in Germany)
- Model: SOFT TRD
- Year of construction: 2000
- Number of ropes: 2
- Nominal capacity of the machine: 300 Kg
- Nominal capacity of each rope: 150 Kg
- Maximum temperature: 140°C
- Bath ratio: 1:8
- Variable nozzles model: VARIOJET
- Tank for the preparation of dyes and auxiliaries

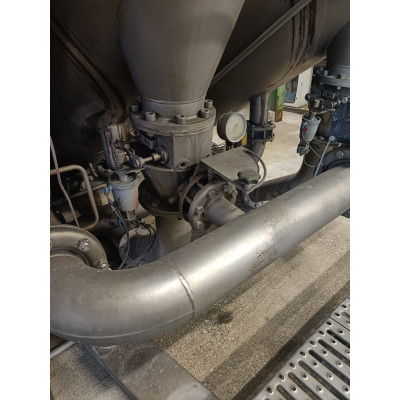

- Bath circulation pump with variable speed via inverter
- Heat exchanger with filter
- possibility of excluding the second tube, so the machine can work with both 2 ropes or only with 1 rope if the second tube is excluded.

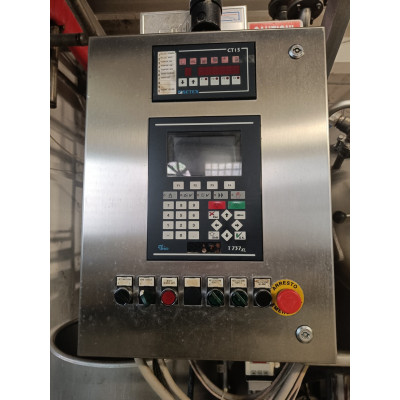

- SETEX programmer model 737
- Stainless steel platform
- Suitable for woven and knitted fabrics
All pictures in HD are available and downloadable at the following link: https://gitexsrl2011-my.sharepoint.com/:f:/g/personal/lorenzo_gitexsrl2011_onmicrosoft_com/EsPO5xCrqfJKnufkWnSBkO0BTt1Mg9EIuk2JciZyywK6Vg?e=XUmCr2
