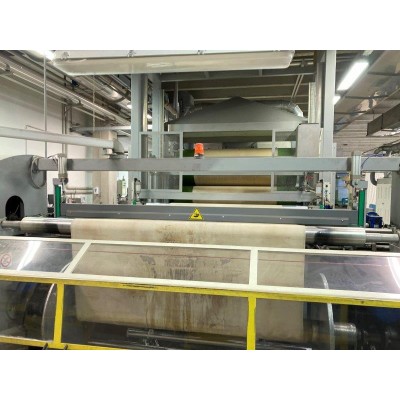

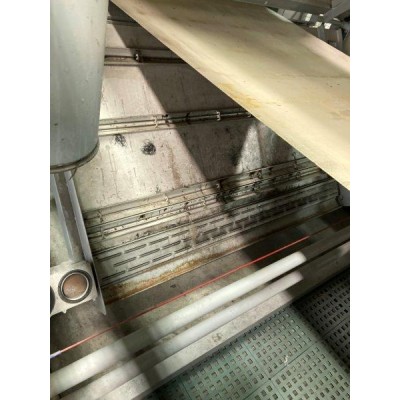

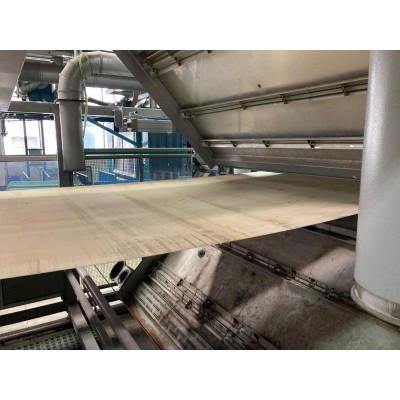

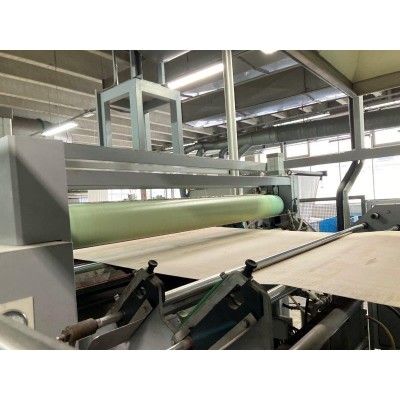

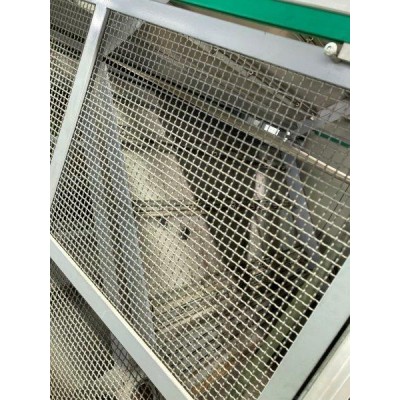

Ref.566 - Tangential sizing machine TMT Model WR 1000 QUEEN Year 2008
- Brand: TMT
- Model: WR 1000 QUEEN
- Year of construction: 2008
-Speed up to 50 meters / 1 '
-Max working height 2.350mm
-Max disks diameter 1.000mm
-Max beams width 3.100mm
-Dimensions: 13,56 x 4,84 mt
Machine composed with:

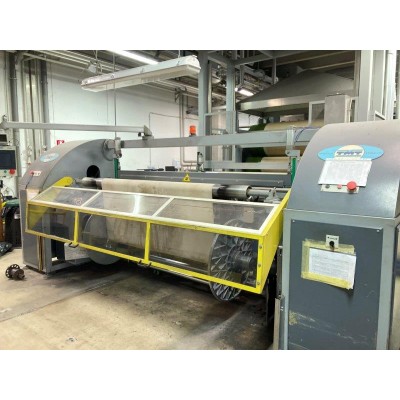

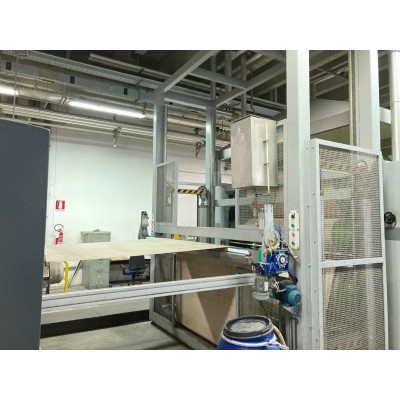

-N.1 Bi-directional unwinding head complete with beams lifting unit and control panel

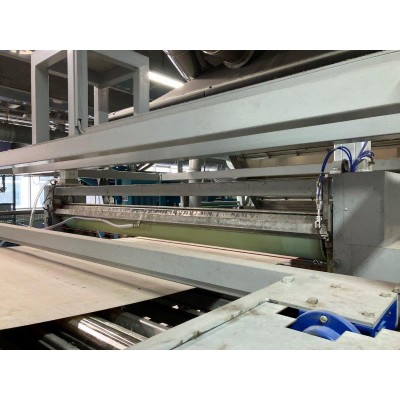

-N.1 Double tangential applicator group complete with heating equipment
-N.1 Leveler

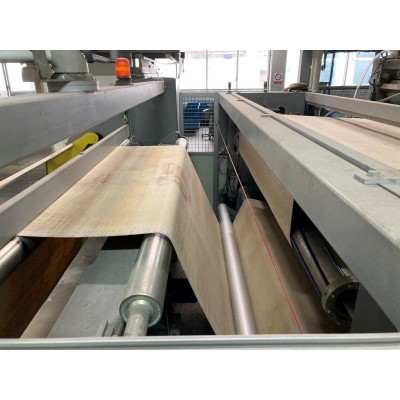

-N.1 Wet separation unit

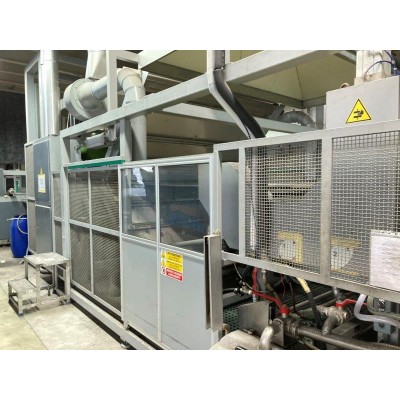

-N.1 Enhanced mobile oven for non-contact drying (infraven)

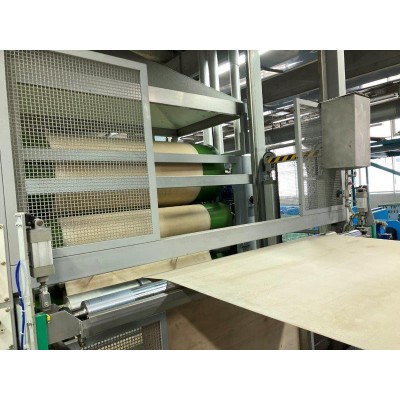

-N.1 Drying cylinder
-N.1 Humidity control system
-N.1 Dry separation unit

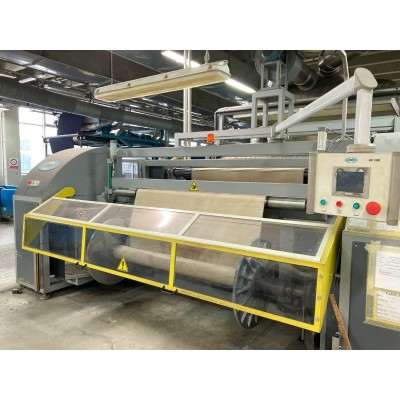

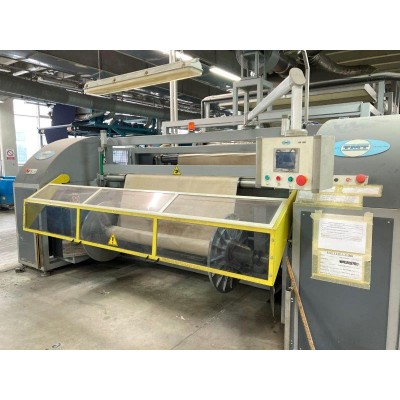

-N.1 Bi-directional wrapping head complete with expandable comb unit, beams lifting
unit and control panel with closed circuit camera
-N.1 Outgoing waxing group
-N.1 Output chain accumulation group (non stop) suitable for housing up to 30mt of
chain

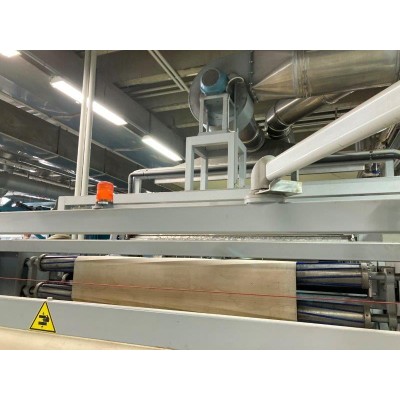

-N.1 Fume extraction set complete with:
*n.2 complete hoods in stainless steel with relative coatings
*n.1 complete set of stainless steel pipes 304 dia. 400 ÷ 250
*n.1 suction fan 9 Kw
*n.1 group of stirrups and accessories
-N.4 Set of attacks (total 8 attacks) for two different types of beams
