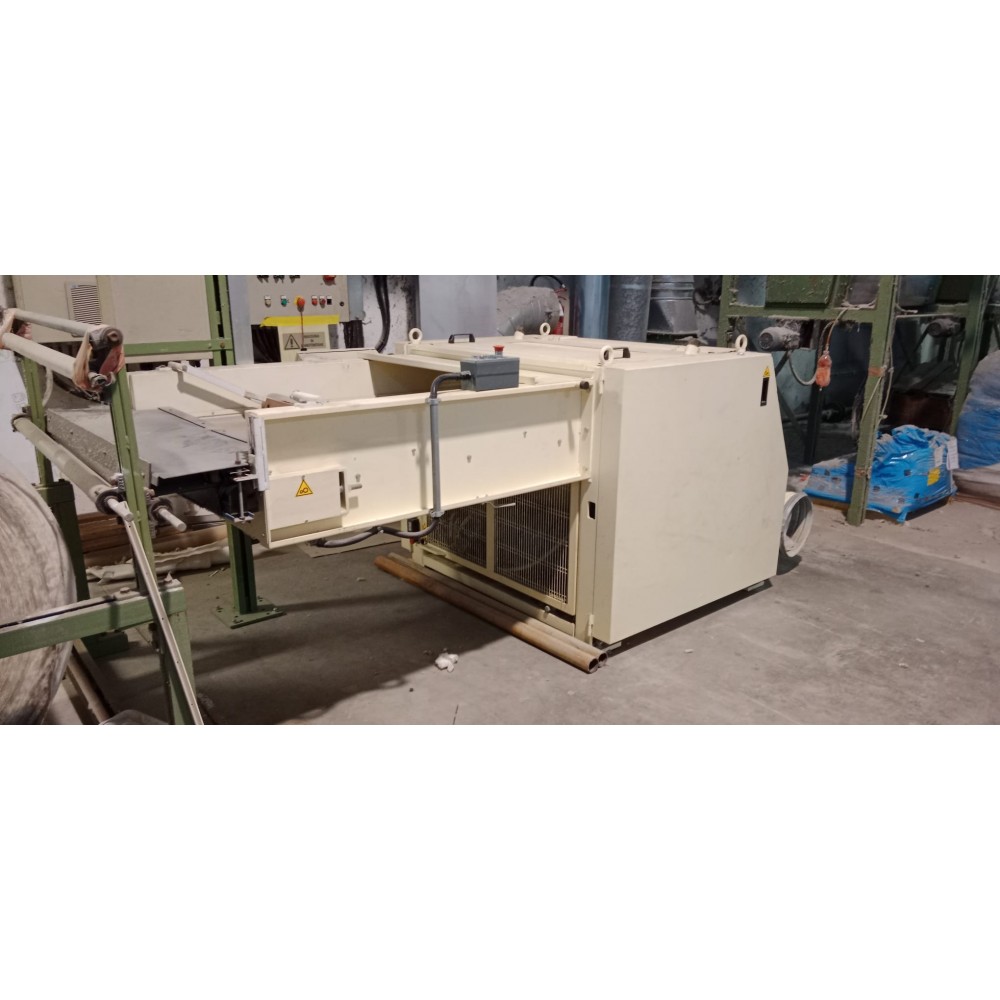

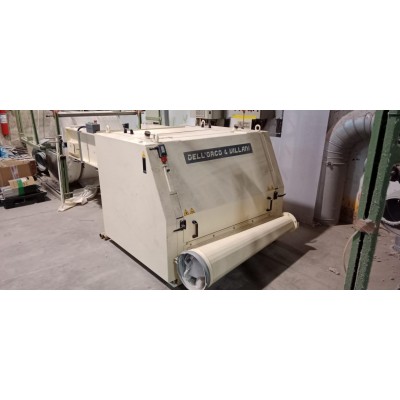

Ref.637 - DELL'ORCO & VILLANI fine carding opener machine CO1000 year 2010

Ref.637 - DELL'ORCO & VILLANI fine carding opener machine CO1000 year 2010

- Brand: DELL'ORCO & VILLANI

- Year 2010

- Working width: 1,000 mm

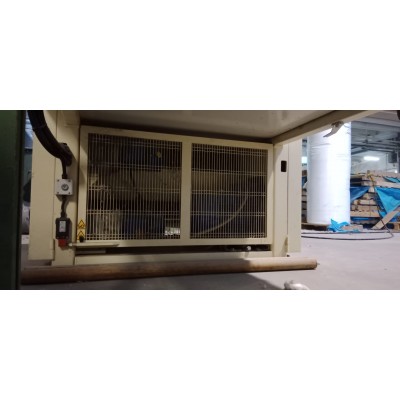

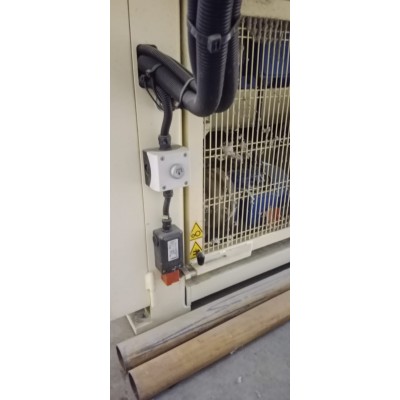

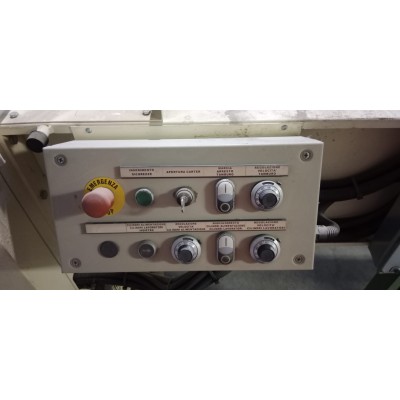

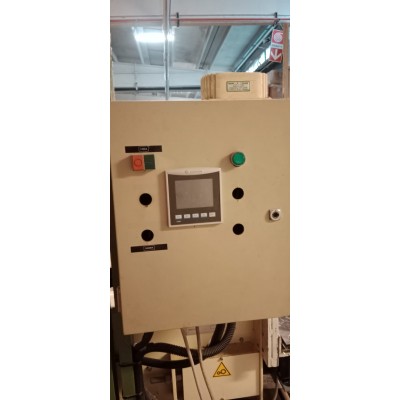

- Electric motors and electrical equipment on board the machine.

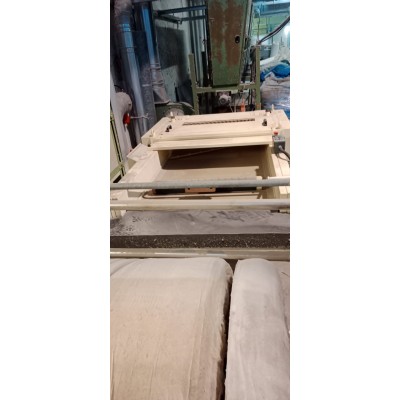

- Long type PVC feeding mat for feeding manual, with upper pressing cylinder.

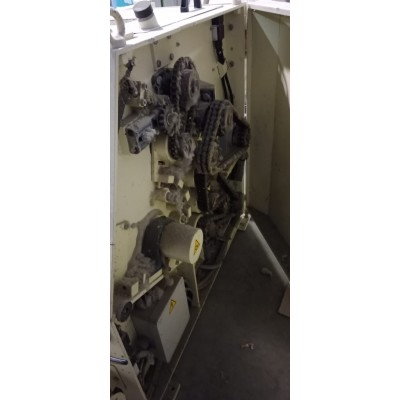

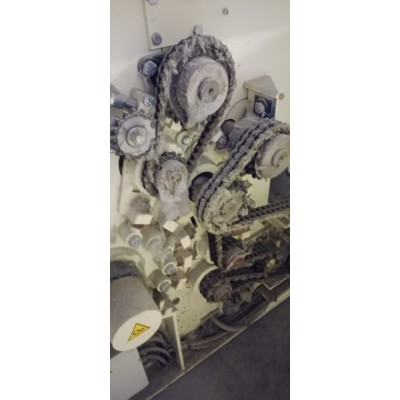

- Pair of feeding cylinders Ø 130 mm. coated in rigid seal Graf V16, driven by electric motor 1.1 kw., with variable speed controlled by inverter.

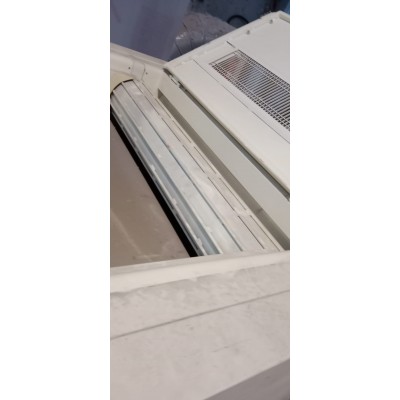

- 3 deflaking cylinders Ø 130 mm., all covered in rigid gasket Graf V16, controlled by an independent electric motor of 0.55 kw., with variable speed controlled by inverter.

- Drum Ø 515 mm., dynamically balanced and statically, coated with Graf V16 e rigid gasket driven by electric motor. of kW. 11 with variable speed controlled by inverter.

- Discharge hopper in galvanized sheet metal with flange connection to the downstream pneumatic transport system Ø 310 mm
