Ref.475 - Sizing machine KARL MAYER - ROTAL with BENNINGER direct warpeing machine

Ref. 475 - Sizing machine KARL MAYER - ROTAL with BENNINGER direct warpeing machine with VIDEO

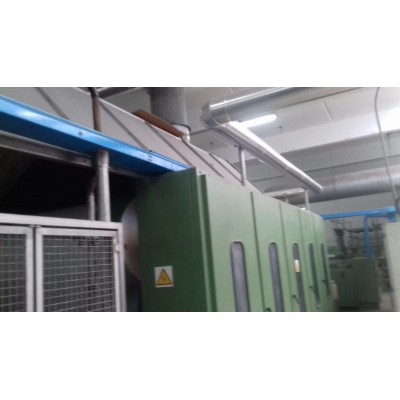

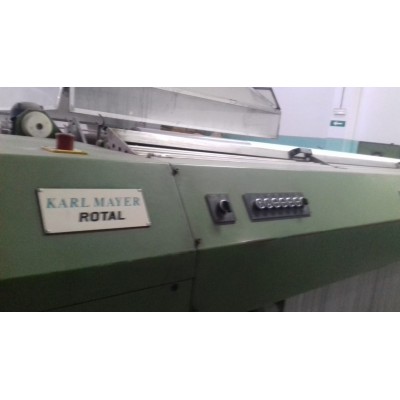

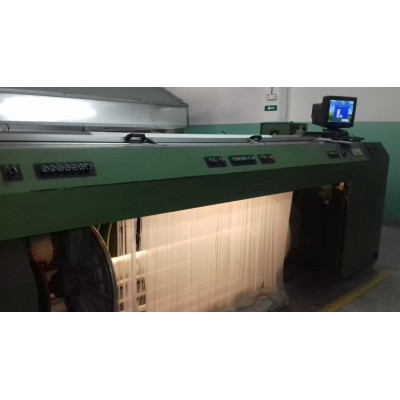

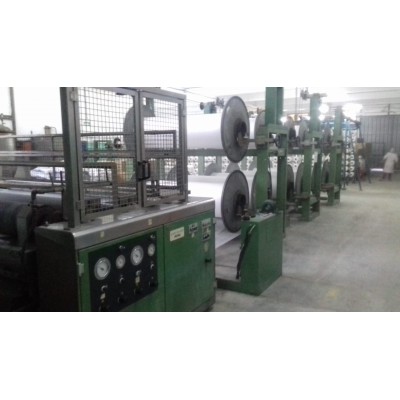

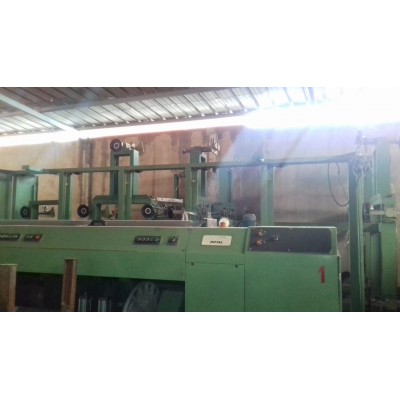

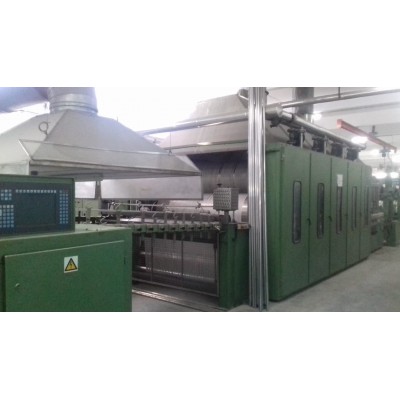

Sizing machine KARL MAYER - ROTAL working width 2.400 mm with VIDEO
- Suitable to work with sectional and direct warp-beams
- Year of construction: end of 1999 (started up in 2000)

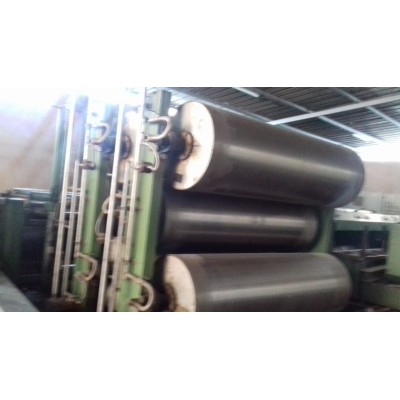

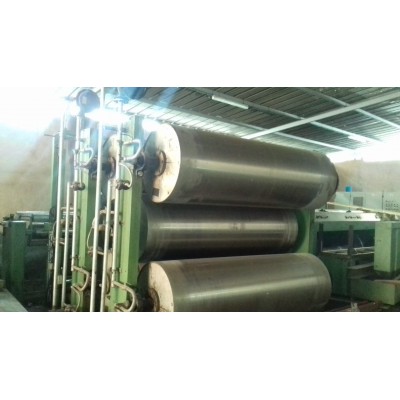

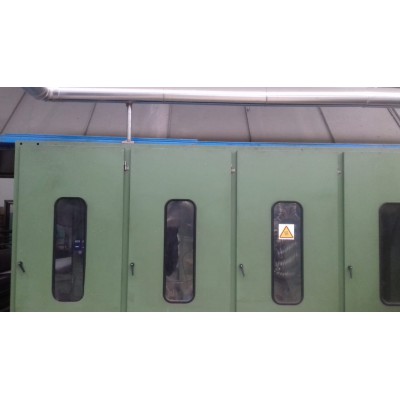

- N. 12 drying cylinders at 5 bar, 6 tefloned and 6 stainless steel. Width: 2400 mm
- N. 4 regulations of drying cylinders temperature
- Recovery group which allows the removal of yarn defect in sizing box when changing the beam

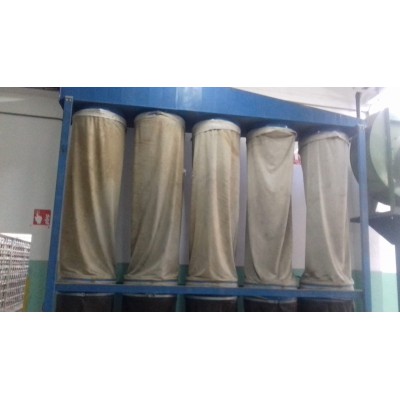

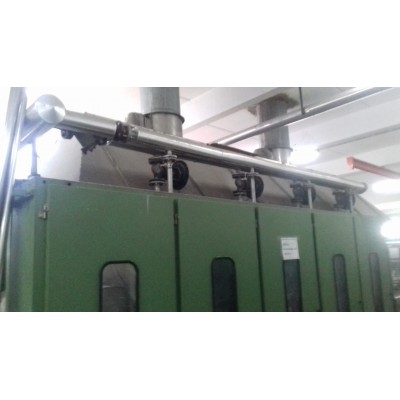

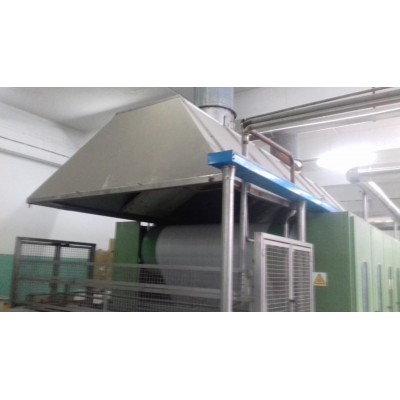

- Suction fan with 2 motors

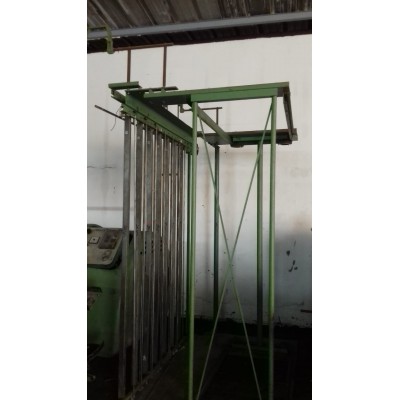

- Pneumatic lift for operator
- Exit for beams lenght up to 3000 (total barrel lenght), flange diam. 1000mm

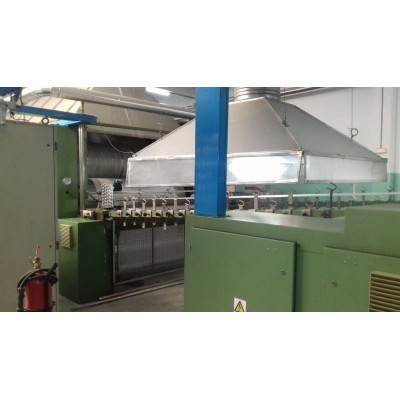

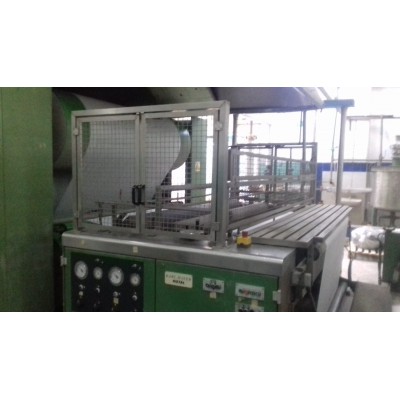

- 1 sizing box with double squeezing (2 immersion rollers and 2 squeeze rollers). Width: 2400 mm
- Width of squeeze rollers: 2400 mm
- N.2 trolleys for beam to beam function
- Expansion comb, automatic zig-zag, pressing roller
- Waxing device
- N. 15 Leasing bars
- Splitting lenght: 5 mts

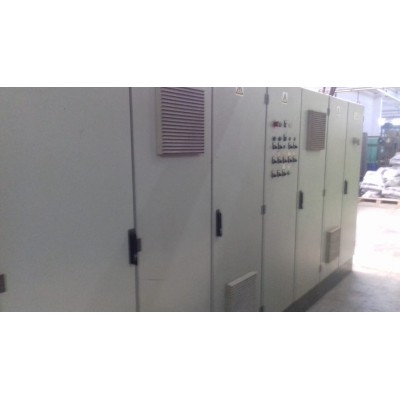

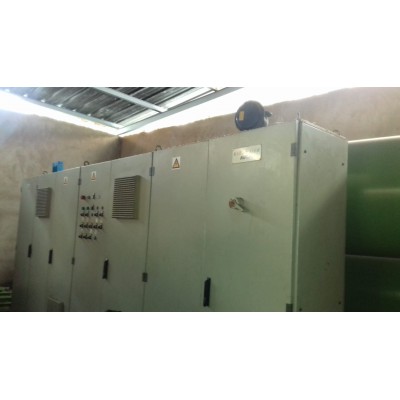

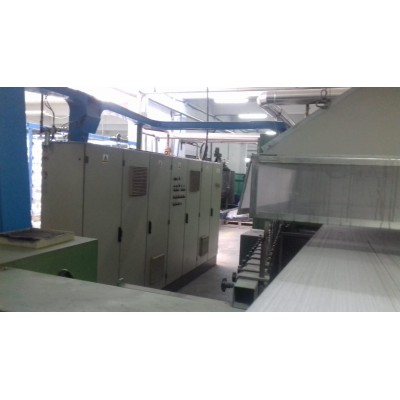

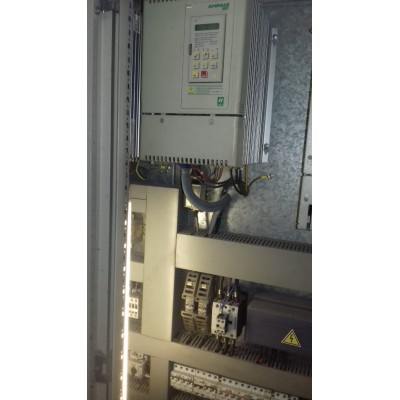

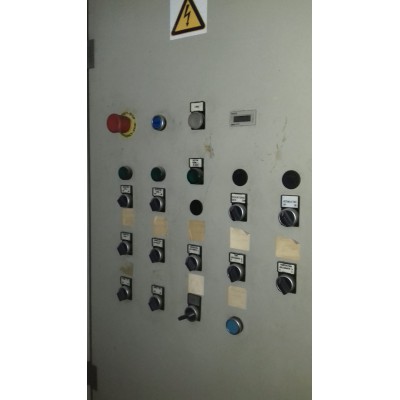

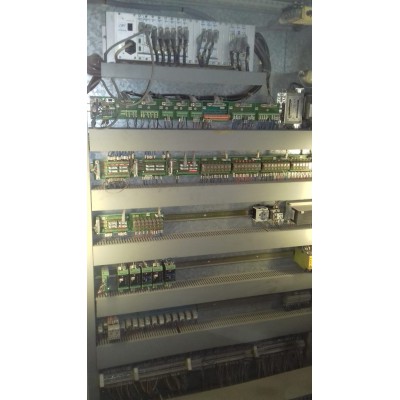

- Electric box
- Karl Mayer / Rotal software
- Beam capacity: 1000 mm.

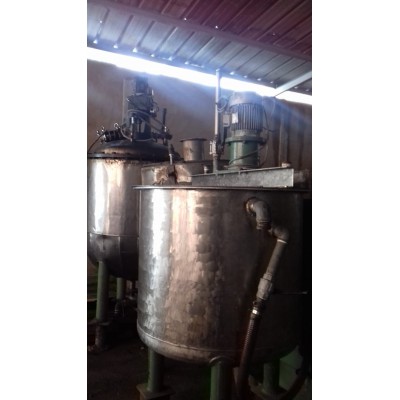

- Size kitchen with 1 mixer (capacity 550 lts) and 1 steam boiler (capacity 600 lts)

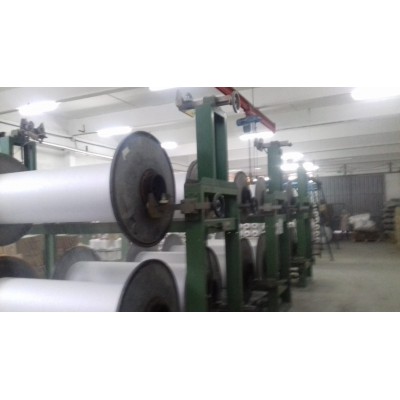

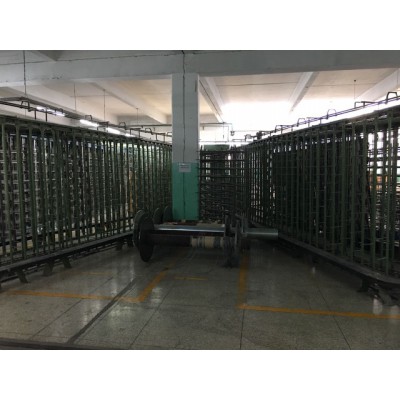

- Creel suitable for 17 warp-beams in working-width 1800/2200 mm, flange diam. up to 1000 mm

You can see the video of the Sizing machine KARL MAYER - ROTAL in function at these links:
- Youtube: https://youtu.be/hrmeRh4HzII
- Dropbox (downloadable video): https://www.dropbox.com/s/eyirwal0zzgeknd/Sizing%20machine%20KARL%20MAYER%20-%20ROTAL%20ww%202400%20mm.mp4?dl=0

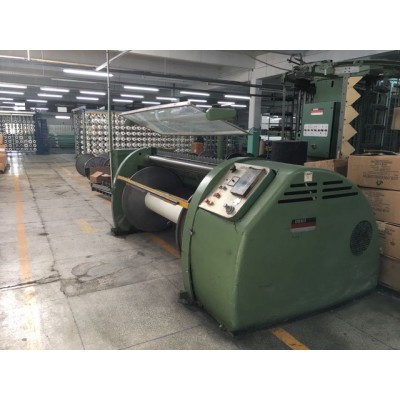

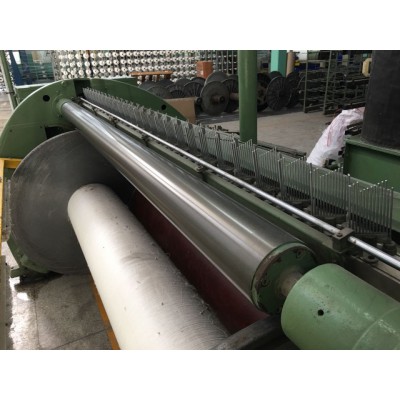

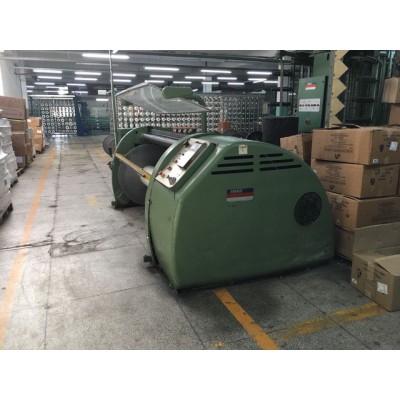

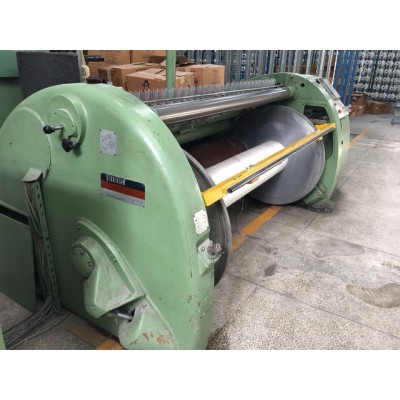

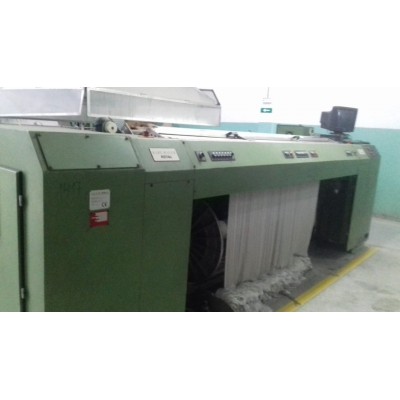

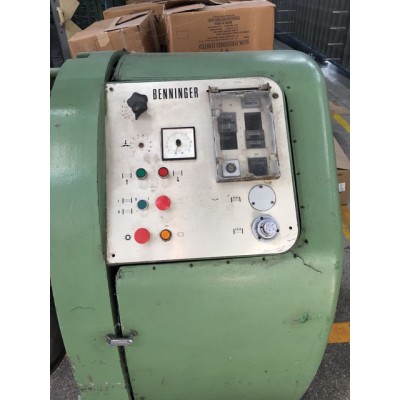

BENNINGER direct warpeing machine ww 1800 mm with BENNINGER creel with VIDEO
- Brand: Benninger
- Model: BEN-DIRECT
- Year: 1998
- Working width: 1.800 mm
- Maximum speed: 1200 mt/min

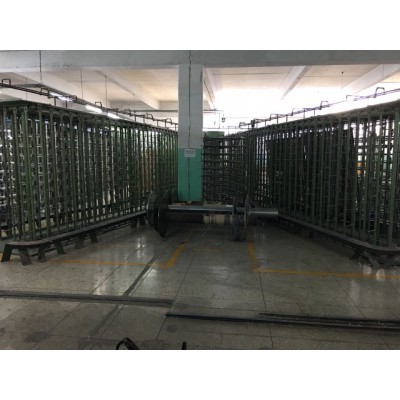

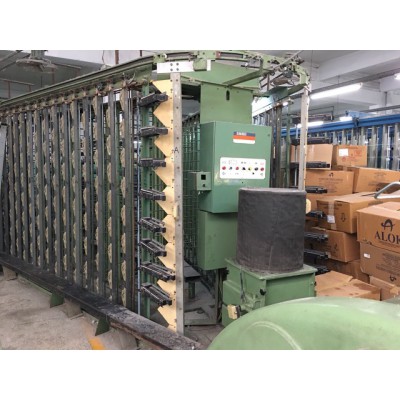

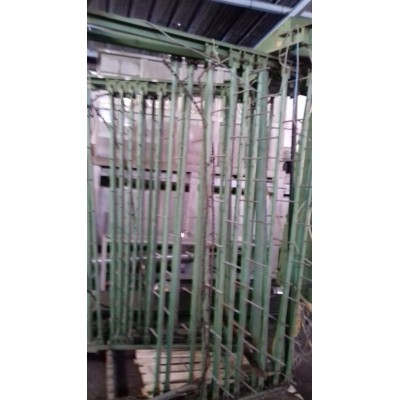

- Benniger creel, V-Creel type BEN-SENS-546, 546 positions + reserve, pitch 290 mm

Sizing machine KARL MAYER - ROTAL can be supplied without direct warping machine (but direct warping machine can't be supplied without sizing machine)

You can see the video of the BENNINGER direct warping machine in function at these links:
- Youtube: https://youtu.be/DPJw3f2joJk
- Dropbox (downloadable video): https://www.dropbox.com/s/01bu9ybl3nlire8/BENNINGER%20direct%20warper%20machine%20ww%201800%20mm%20with%20BENNINGER%20creel.mp4?dl=0
