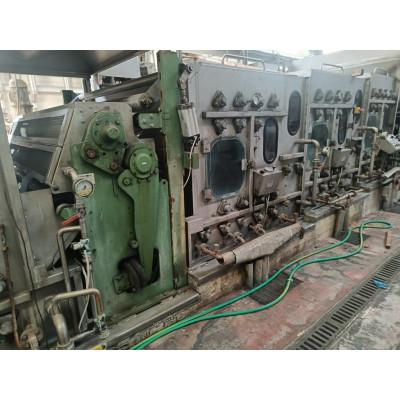

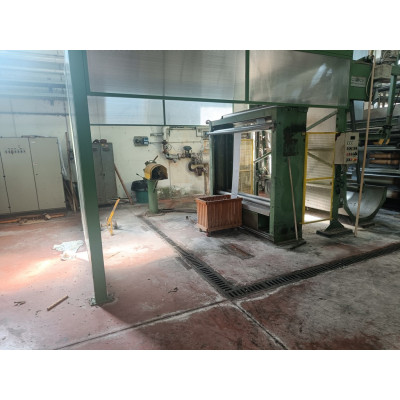

Ref.680 - BABCOCK chain mercerizing line with 12 tanks year 1999 working width 1800 mm
- Manufacturer of the washing tanks: BABCOCK
- Manufacturer of the chain mercerizing line: COMERIO
- Year of construction 1999
- Useful working width: 1800 mm.
- Fabric entry from big roll with axial unwinding
- Entry with J-box for fabric accumulation entry

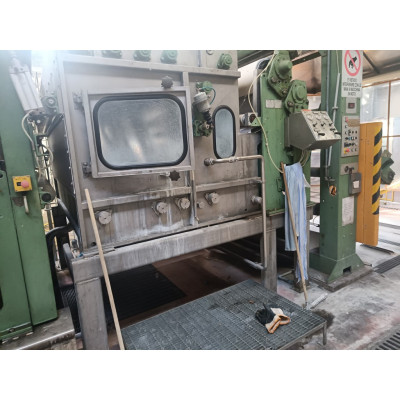

- N. 3 washing-preparation tanks for soda treatment, but they can also work as a simple independent washing unit
- Overhead connection system between the washing line and the mercerizing line, with connection arms and passage cylinders
- N. 4 impregnation tanks
- N. 17 large diameter perforated cylinders for the oxidation of the fabric in air

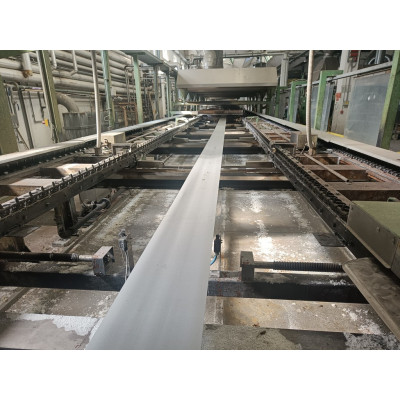

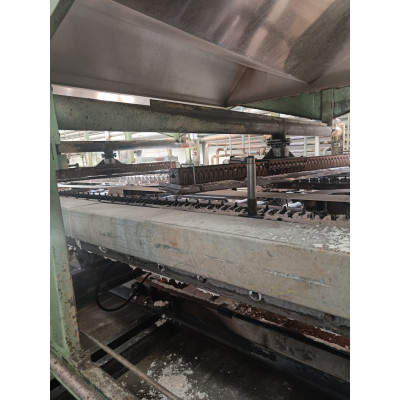

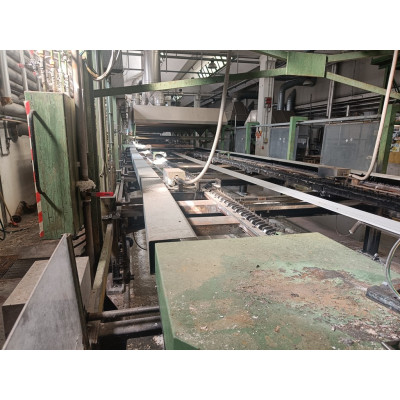

- N. 1 chain mercerizing unit, length 21 meters complete with alkaline showers for greater stabilization of the fabric

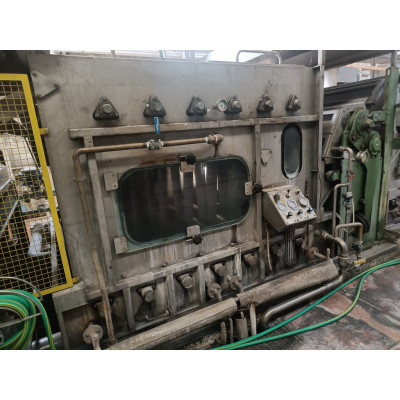

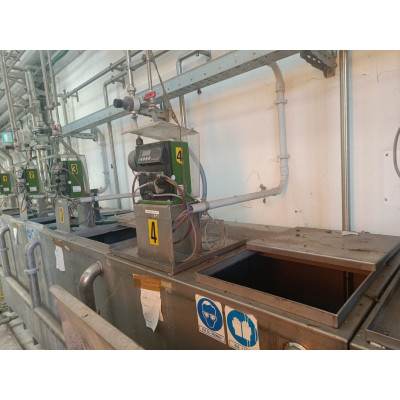

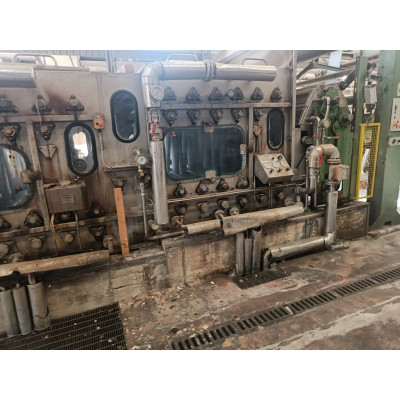

- N. 5 washing and rinsing tanks, the last of which is equipped with an automatic chemical dosing system
- Fabric exit in a big roll with tangential winding

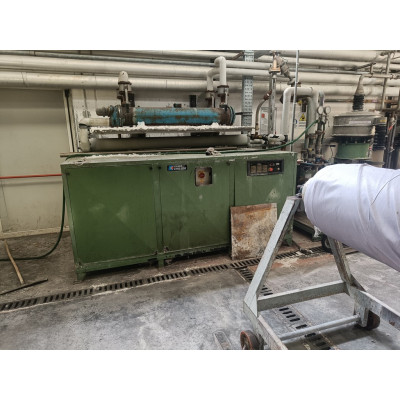

- Chiller
- No. 2 filters to remove impurities from the soda, mainly fluff
- Filter-press for the exhausted soda
- Water system on board the machine
- Steam system on board the machine
- Electrical and pneumatic system on board the machine
You can see the VIDEO of the machine IN RUNNING at these links:
- YouTube: https://www.youtube.com/watch?v=Fep3Yp0Y33w
- OneDrive (downloadable video): https://gitexsrl2011-my.sharepoint.com/:v:/g/personal/lorenzo_gitexsrl2011_onmicrosoft_com/EVLgq8Dr78dMn9sl4ddvm9oBh5DX7JigjdnIj2gqr6tmWQ?e=pCEwRj
All pictures in HD are available and downloadable at the following link: https://gitexsrl2011-my.sharepoint.com/:f:/g/personal/lorenzo_gitexsrl2011_onmicrosoft_com/En852VXcqXBKu9CmmxlJUa4Bo2q2LwkR2BRy4lNQ7AGX1g?e=mVC97q
