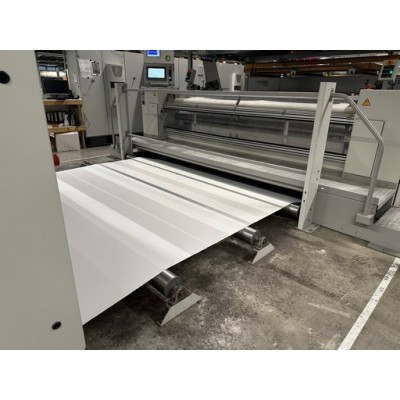

Ref.632 - BRUECKNER stenter year 2016, width 3200 mm, 4 chambers gas heated, with padder and weft straightener MAHLO

Ref.632 - BRUECKNER stenter year 2016, width 3200 mm, 4 chambers gas heated, with padder and weft straightener MAHLO

Request Custom Quotation


Scroll down for more details

Ref.632 - BRUECKNER stenter year 2016, width 3200 mm, 4 chambers gas heated, with padder and weft straightener MAHLO
- Brand: BRUECKNER
- Model: POWER-FRAME VN SFP 32/4
- Year of construction: 2016
- Working width: 3.200 mm

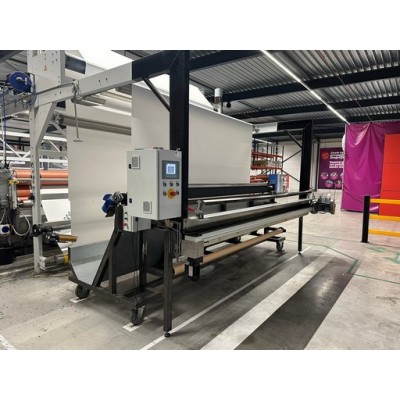

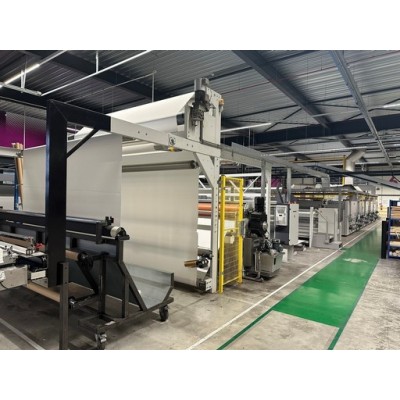

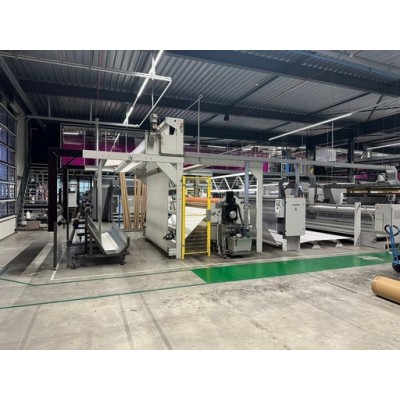

- Entry of fabric with J-box

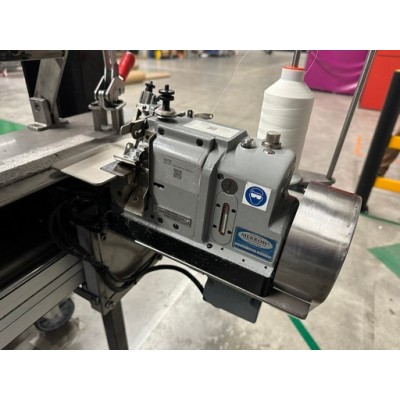

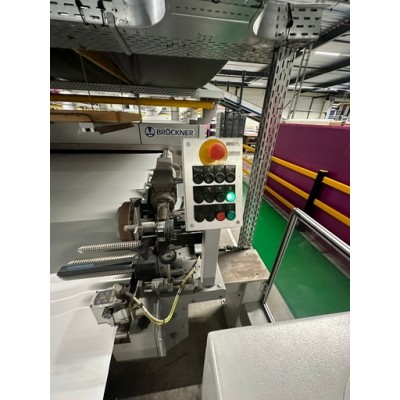

- MERROW cutting and sewing machine
- Fabric stopping device for the sewing
- Introduction frame to the padder with some passage cylinders

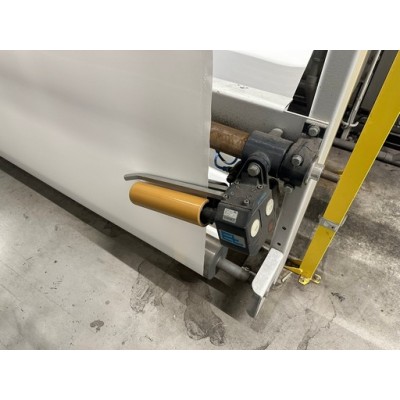

- Fabric guiding device ERHARDT+LEIMER, model KF 2020

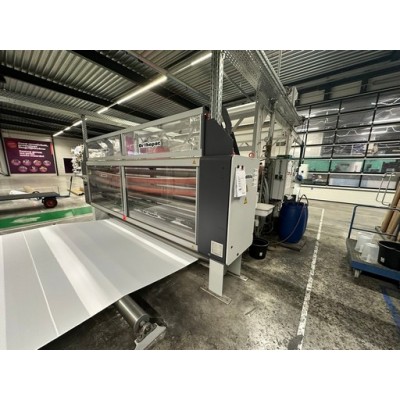

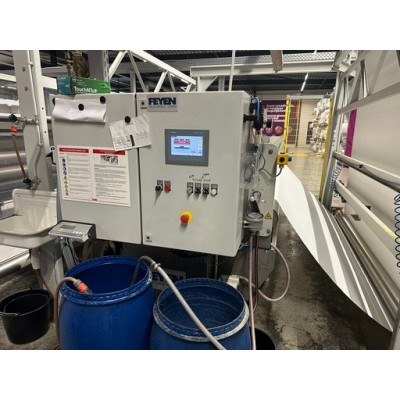

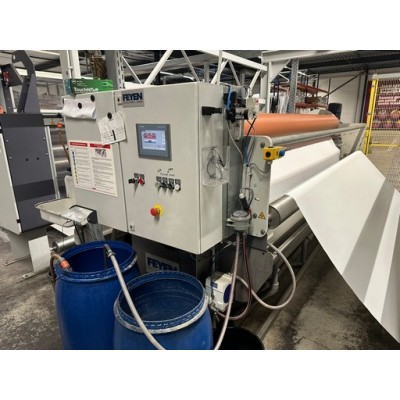

- Impregnation padder FEYEN (KUESTERS), n.2 cylinders, one is floating

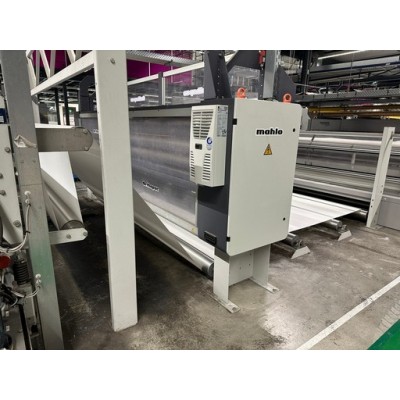

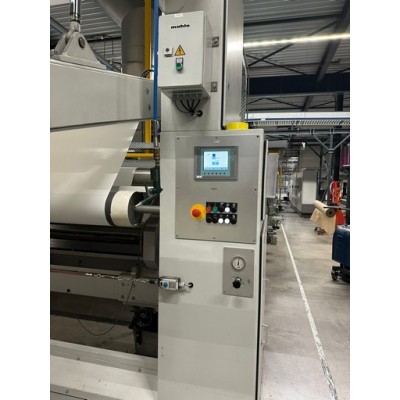

- MAHLO weft straightener, with optical heads, model ORTHOPAC RVMC-126

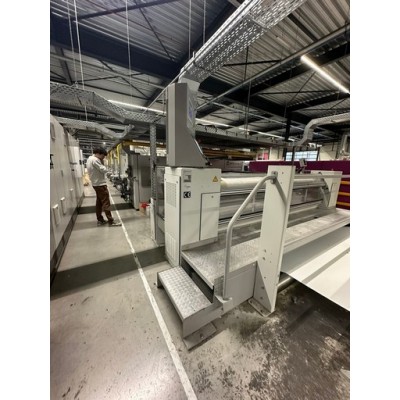

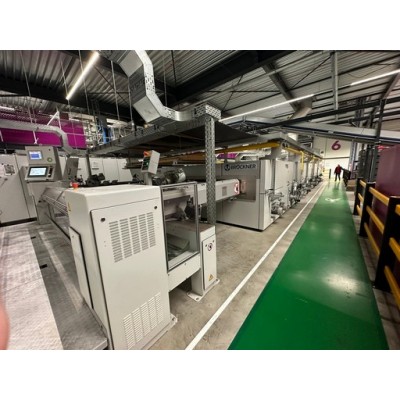

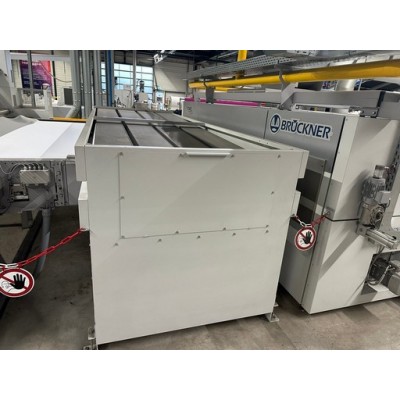

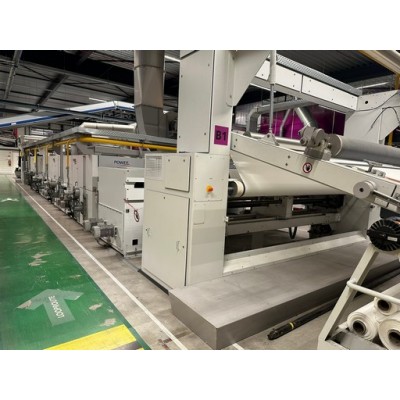

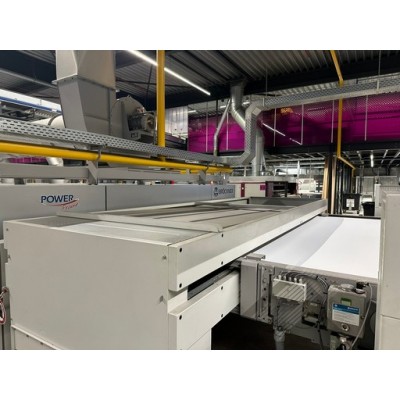

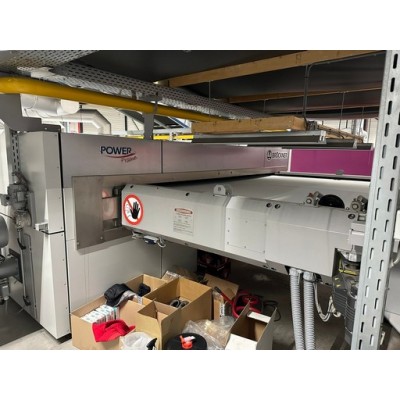

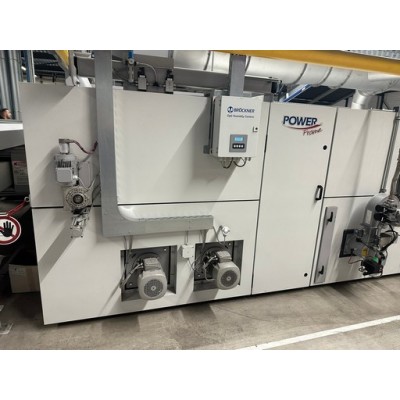

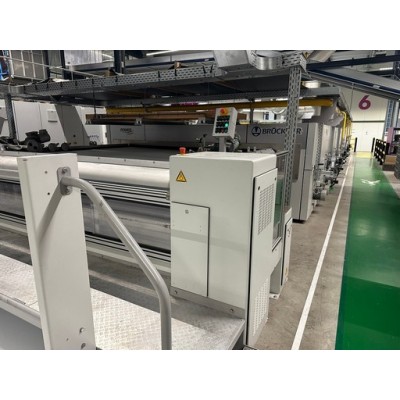

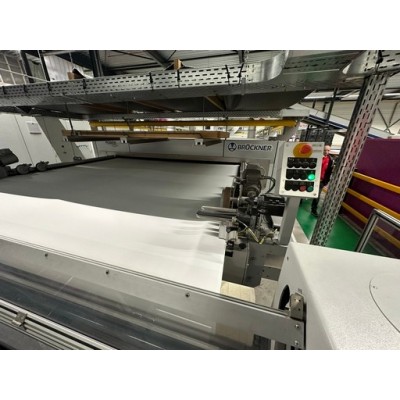

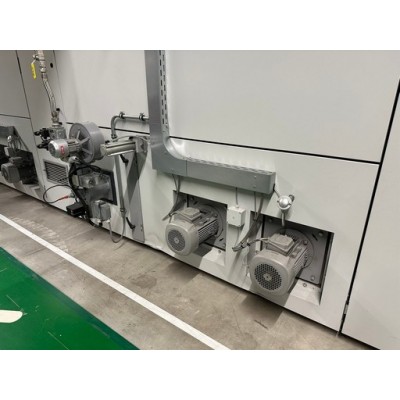

- BRUECKNER single layer stenter machine
- Oven entry arms’ length: 3.000 mm.

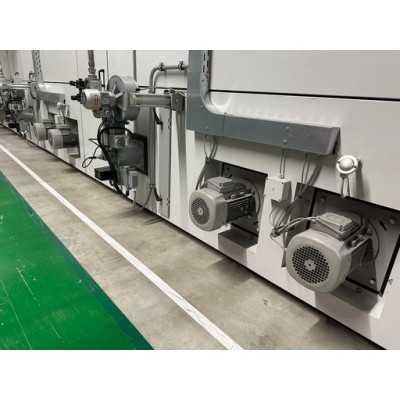

- Number of chambers: 4

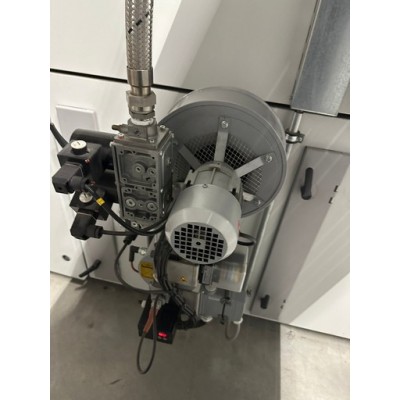

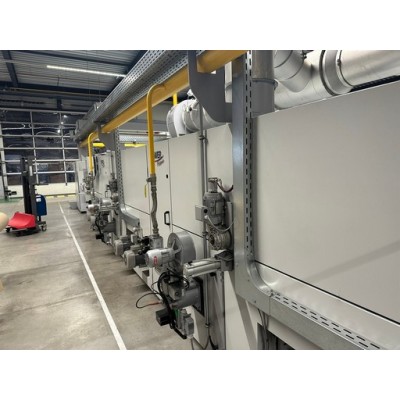

- Heating system: gas
- Maximum working temperature: 210 °C
- Vertical chain
- Pin chain
- Maximum working speed: 40 meter/minute
- Oven exit arms’ length: 3.500 mm
- Cooling device

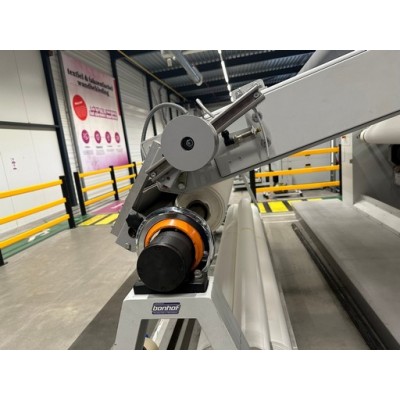

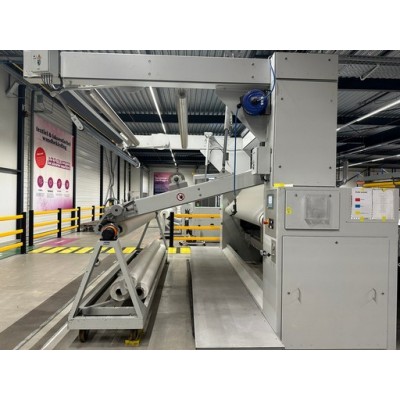

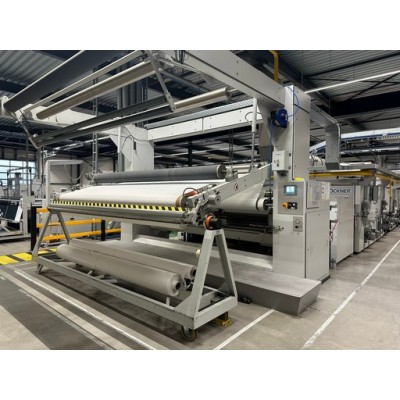

- Delivery of fabric with plaiter and big roll
- OPTI-HUMIDITY, (moisture/humidity check for the exhausted/waste air) with measuring probe

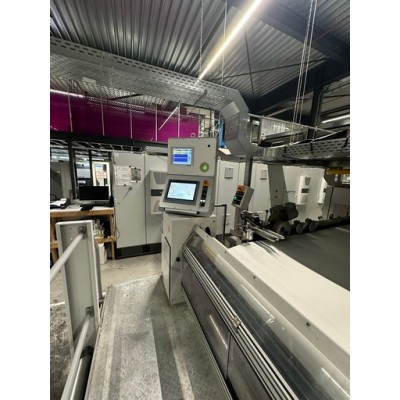

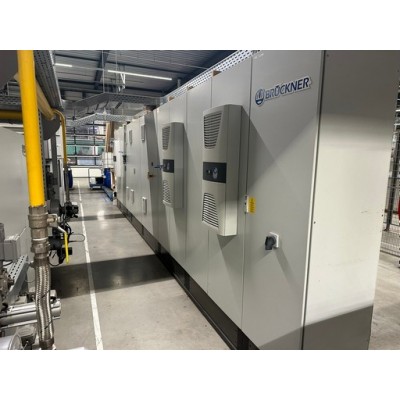

- MULTICONTROL, work process control and visualization system

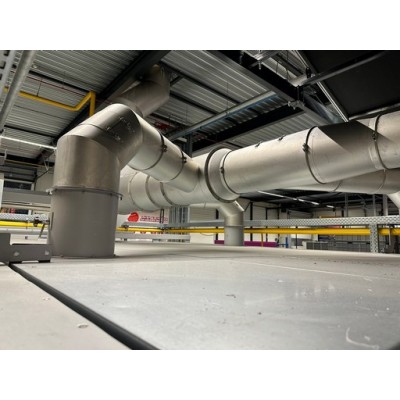

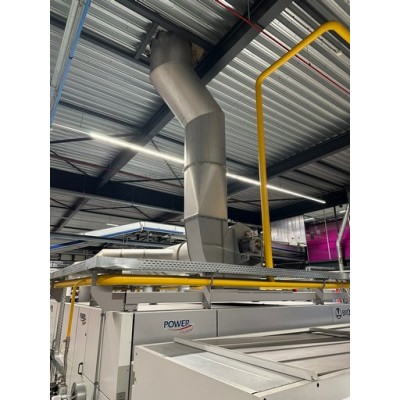

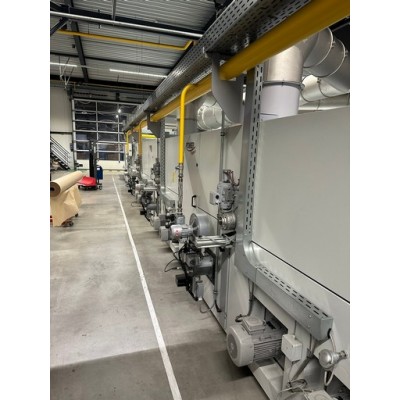

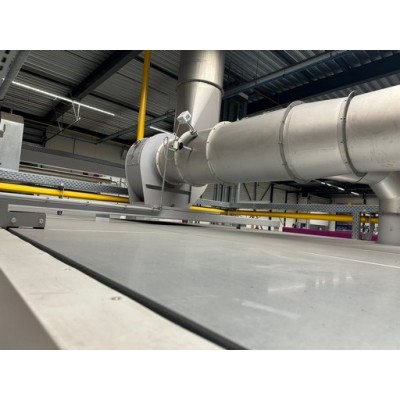

- Exhaust-suction device for the expulsion of exhaust/waste fumes positioned above the oven

All pictures in HD are available and downloadable at the following link: HD pictures

Ref.632

Data sheet

Kind of machines
Stenters and ovens
Brand
BRUECKNER
Year of construction
2016
Working width
3.200 mm
Chambers
4
Heating System
Gas
Suitable for
Woven fabrics
