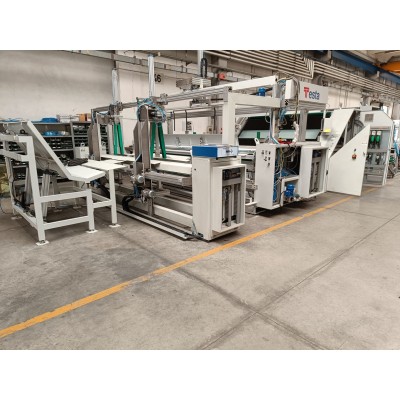

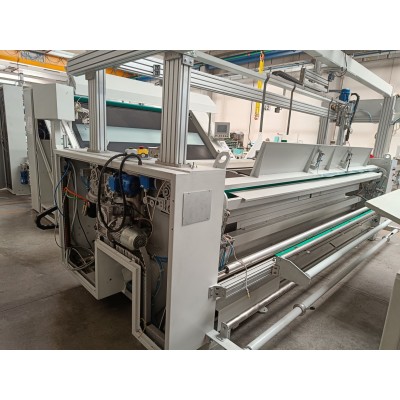

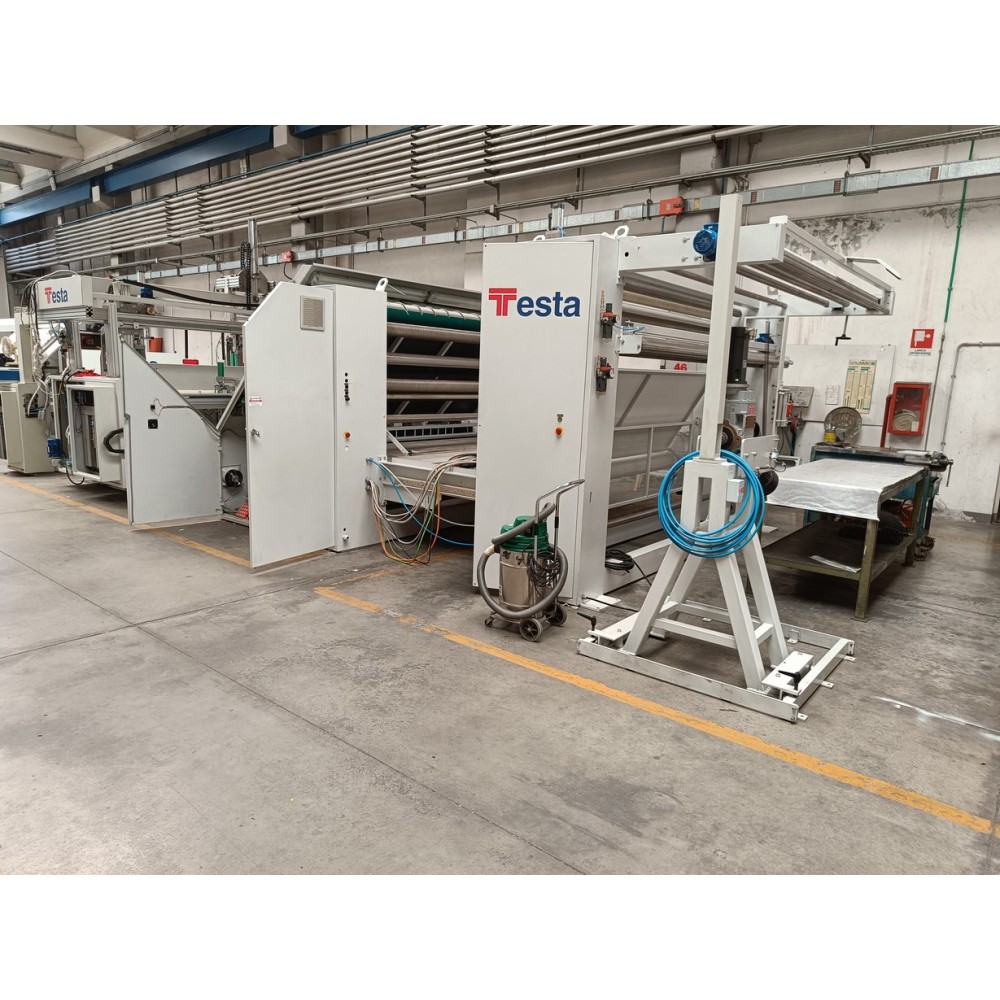

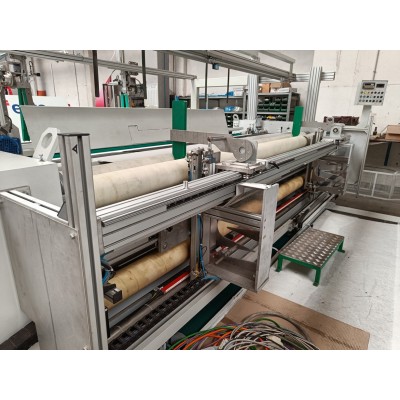

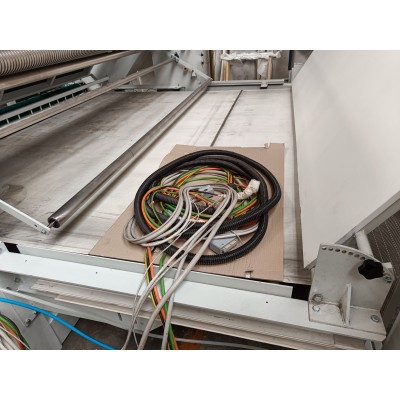

Ref.612 - TESTA GROUP, model 111 EUREKA 2, year 2019, inspection and packing line

Ref.612 - TESTA GROUP, model 111 EUREKA 2, year 2019, inspection and packing line
- Brand: TESTA GROUP
- Model: 111 EUREKA 2
- Year of construction: 2019
- Max useful working width in mm: 2800
- Table height in mm: 3000
- Minimum working width in mm: 600
- Min diameter of the roll in mm: 100
- Max diameter of the roll in mm:    600
- Input details of the fabric:    From big roll/Plater/Stenter
- Winding speed: 0-80 mt/min
- Max weight of the roll: 100 Kg
- Type of fabric worked: Knitted fabric – primarily fabric for mattresses
- Voltage; Phases; Neutral wire; Frequency 400, 3 , N , 50
- Compressed air working pressure: 6 BAR ok
- Casing colour: RAL 7035
- Frame colour: RAL 7035
- Entry fabrics from big roll. Max diameter 1800 mm
- Supplementary compensator to work without stock in the belt

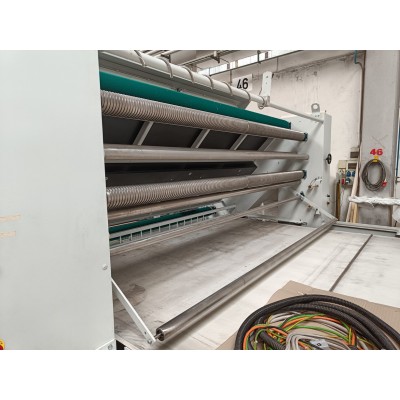

- Entry fabric from plaiter with spiral rollers for knitting articles
- Antistatic bar with control unit.
- 111 winder verifier with 45° inclination of the table
- internal light inside the table
- double seam reader

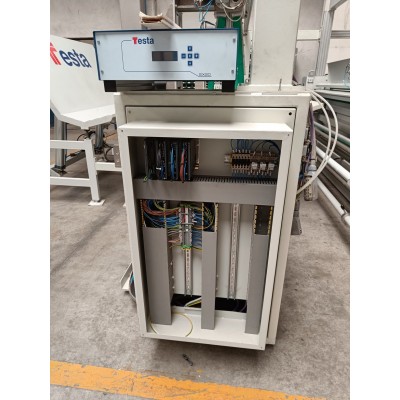

- control panel – alarm indicator - touch screen
- automatic tube feeding from the bottom – mobile panel
- adapters extras for adapter that allow the use of different measures diameter cardboard tubes.
- variable cutting and discard in plater
- automatic discard of the sample
- automatic discard of the seam
- automatic discard of the fault - scraps
- longitudinal packing of the rolls
- longitudinal closing by thermo-welding
- lateral closing of the roll with ultrasound
- note: it’s possible to modify the machine and make the lateral closing by hot air
 (thermo-retractable)
- support for extra plastic film
- extra support to have second plastic film bobbin.

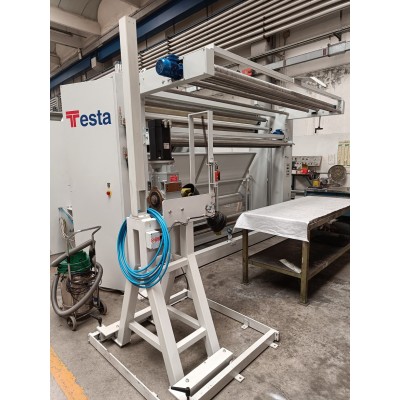

- tilting device up to h 1800 mm
- automatic unloading of the roll after packing into trolley
- predisposition for the i.t. part
- predisposition of the machine to have of an i.t. part, hardware, and software of the labellers etc.
- weigher (inside the machine)
- other: how-to-use manual
- CE mark
- Machine is like new
- The line will be supplied with 12 months of warranty

All pictures in HD are available and downloadable at the following link: HD pictures
