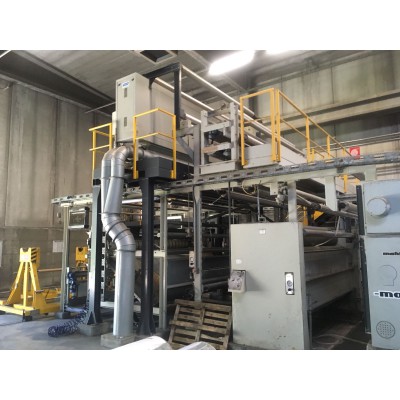

Ref.480 - BABCOCK complete flat stenter line 7 chamber gas heated ww 3200 mm reconditioned in 2015

Ref.480 - BABCOCK complete flat stenter line 7 chamber gas heated ww 3200 mm completely reconditioned in 2015

Composition of the line:
- Entry fabric from big roller
- Linear cutting and sewing machine, manufacturer Merrow
- Double brushing machine manufacturer Monti, installed on the overlying structure
- J-Box with no-stop effect
- Fabric guiding device, manufacturer Erhardt+Leimer model KF 2020

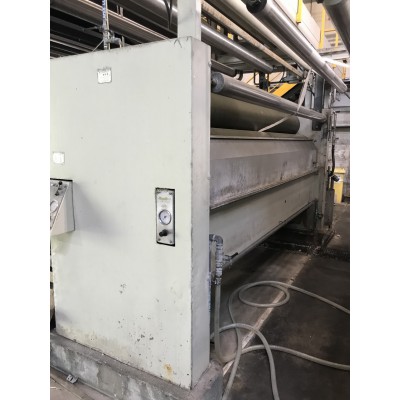

- Padder with 2 rollers manufacturer Babcock, type 5805, year of construction 1991

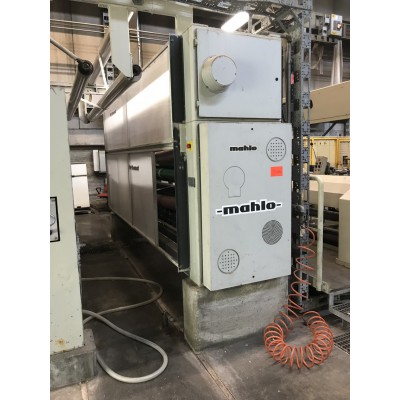

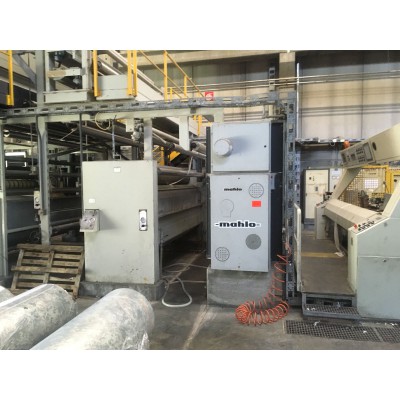

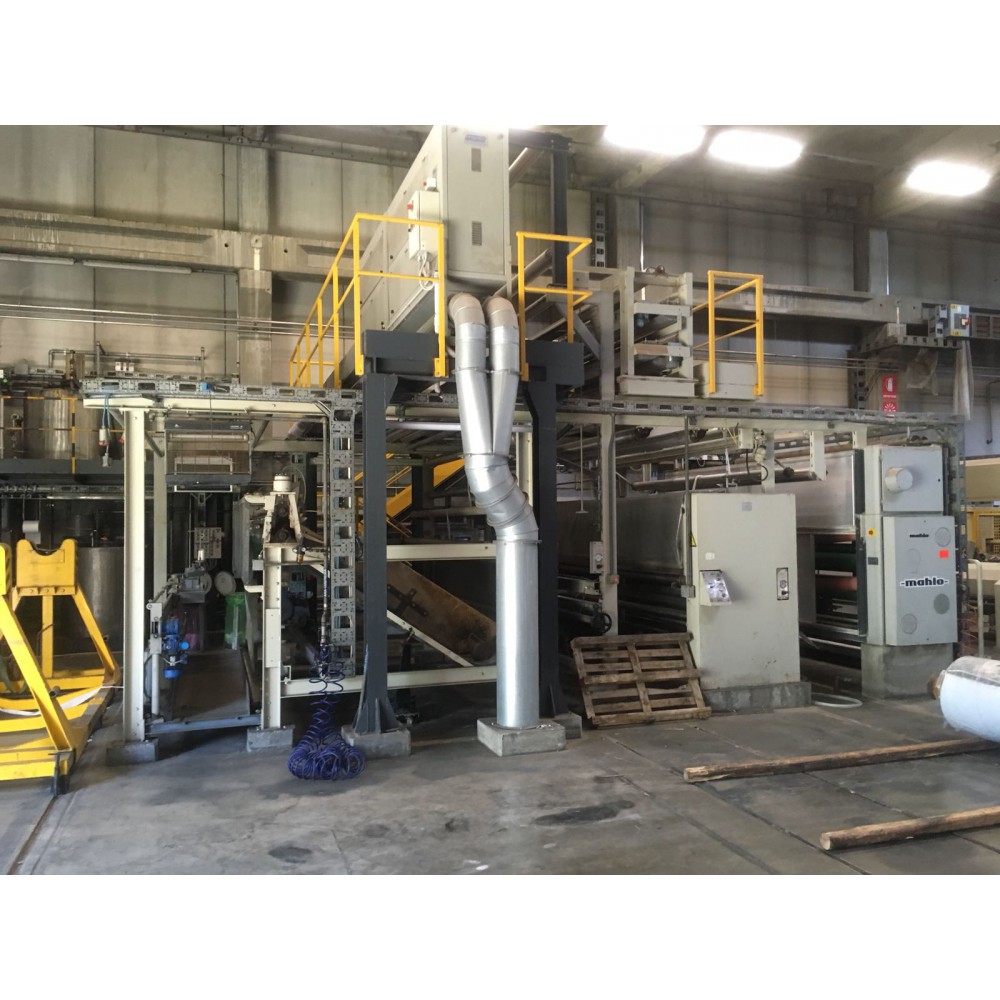

- Weftstraightner manufacturer Mahlo, with optical heads, year of construction 2003, useful working width 3.600 mm.  reinforced model.
- Single layer stenter machine
- Manufacturer: Babcock
- Model: 5000–6800
- Completely reconditioned in year: 2015
- Original year of construction: 1991
- Useful working width: 3.200 mm. on the pins, 3.300 mm. on the clips

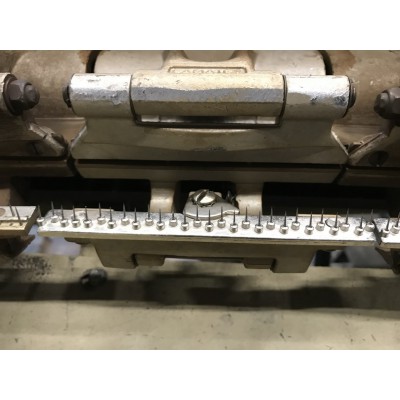

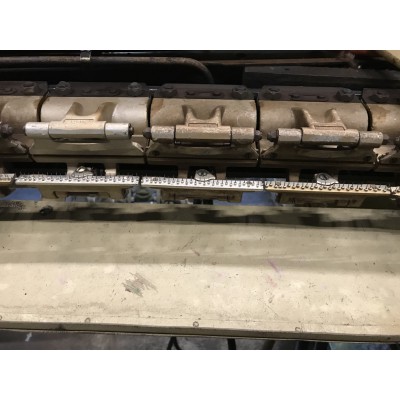

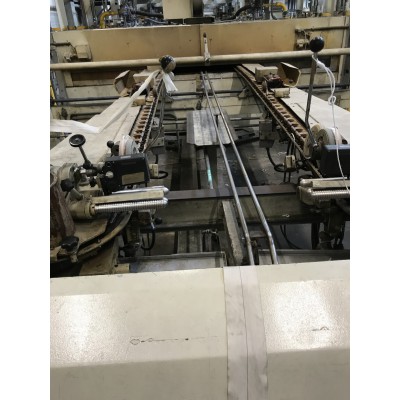

- Horizontal chain with pins and clips
- Length of the entry arms: 4.800 mm.
- Gluing selvedges device

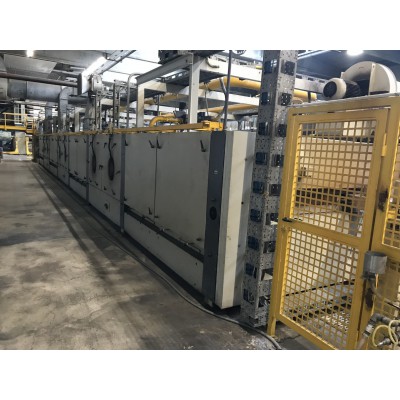

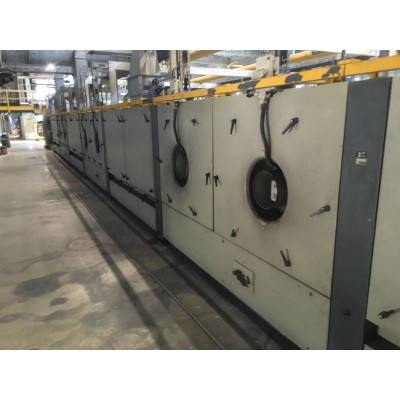

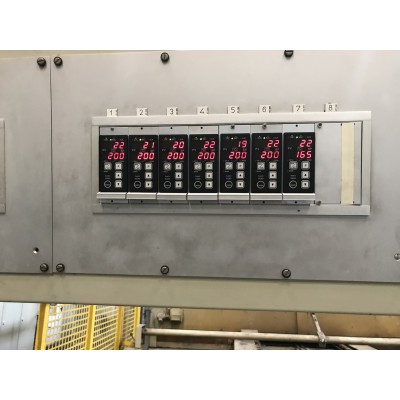

- Oven composed of N° 7 chambers
- Oven is gas heated
- Cooling device at the exit of the oven

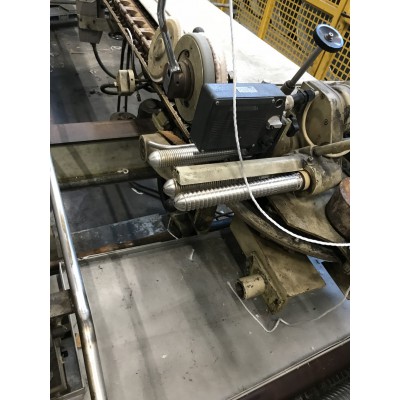

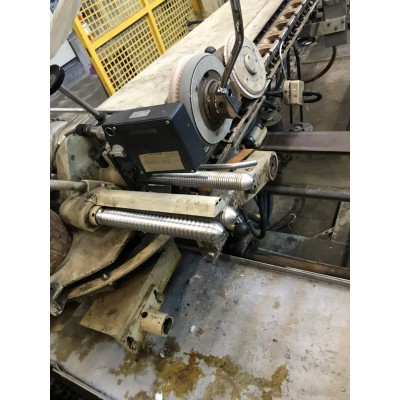

- N° 2 selvedges cutting devices with selvedges suctioning device

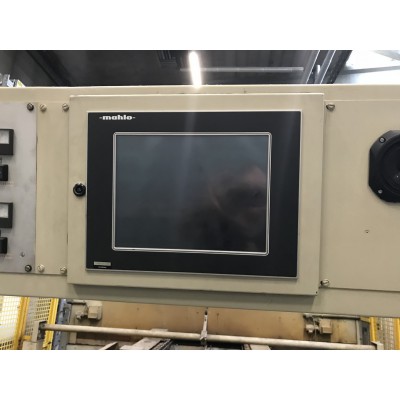

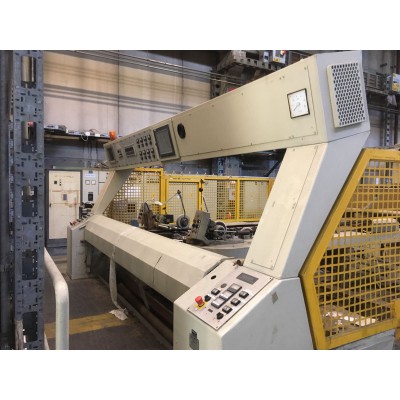

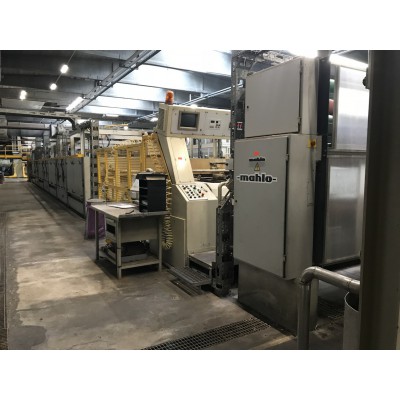

- Mahlo reading bridge with optical heads to correct eventual distortion of the fabric weft, that could be generated inside the oven

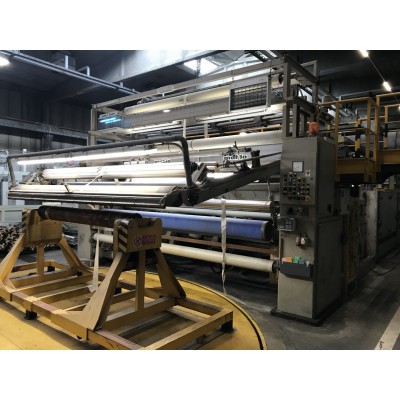

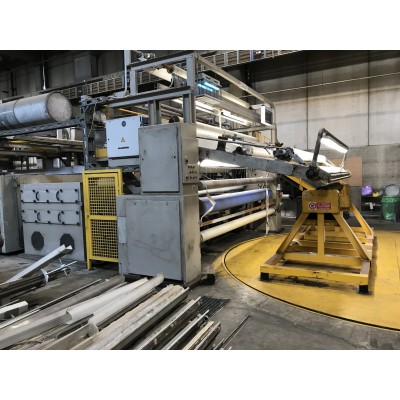

- Delivery fabric in big batch device

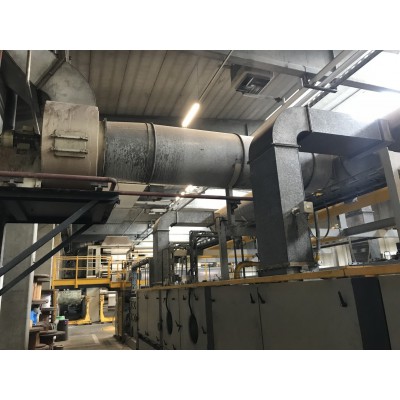

- Exhaust fan for the ejection of exhausted fumes
- The stenter machine will be supply complete with the gas system on board the machine
- This machine has always been very well maintained
- Machine is perfectly running and can be turn on during the inspection.
- The line is suitable for woven fabrics but, the stenter machine, can also be used for knitted fabrics.
- Machine is in prompt delivery
