Ref.732 - THIES beam dyeing plant 2021

Ref.732 - THIES beam dyeing plant 2021

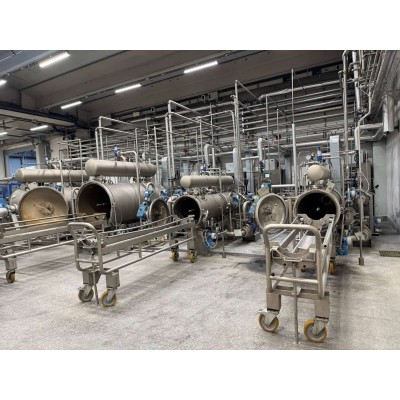

- Plant composed of N. 2 beam dyeing machines with a capacity of 50 kg each, N. 2 beam dyeing machines with a capacity of 300 kg each, N. 1 THIES HP-BATCHER, dye beams, dye beam carts and accessories

- Manufacturer: THIES

- Year of construction: 2021

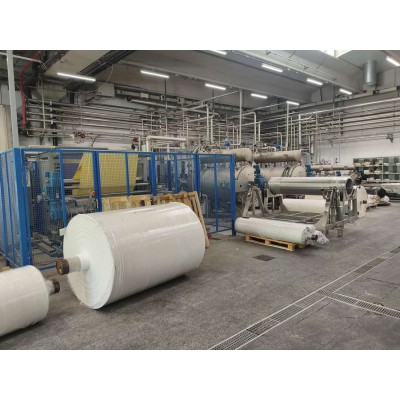

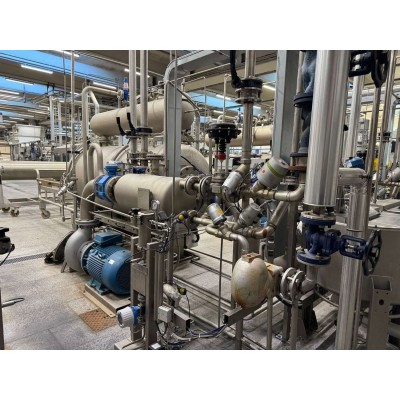

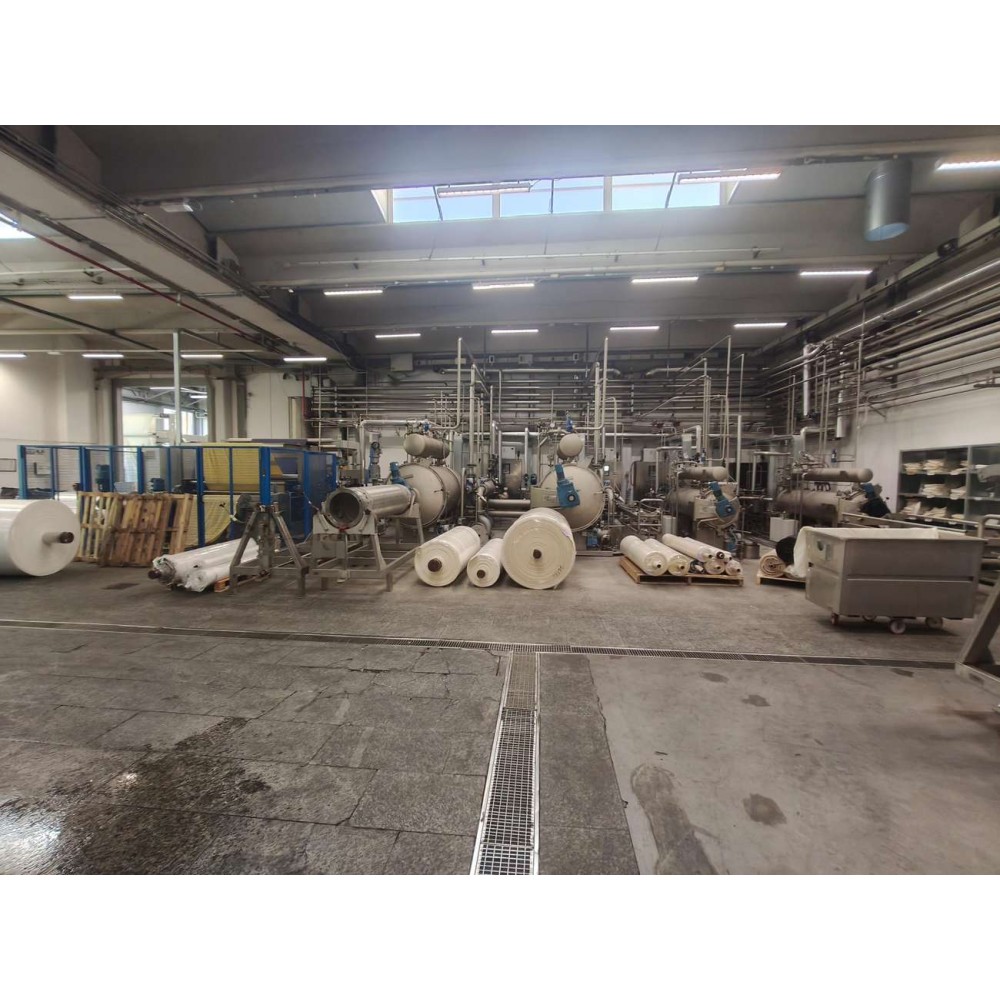

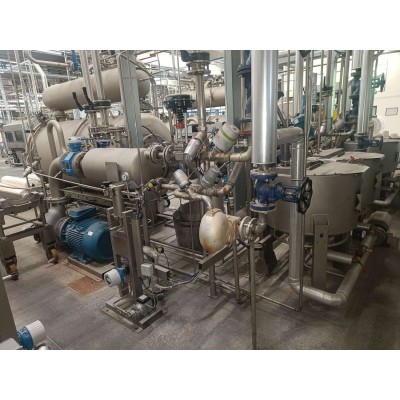

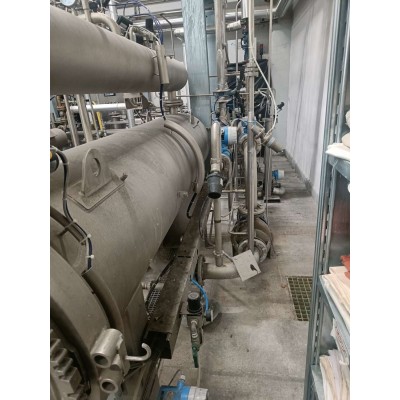

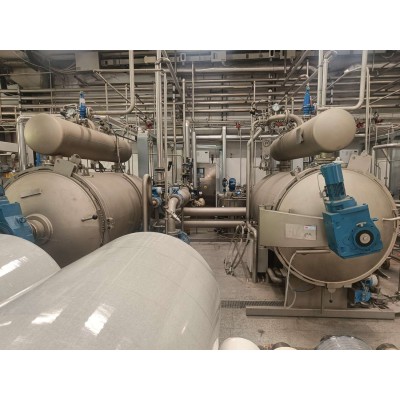

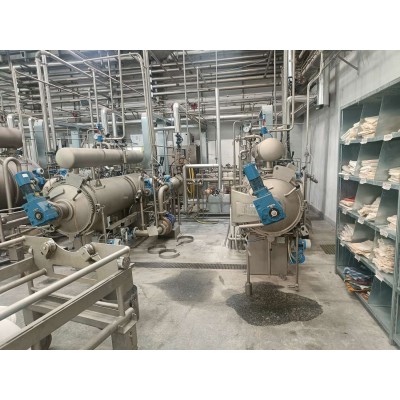

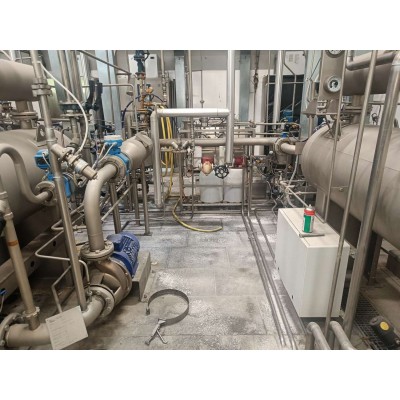

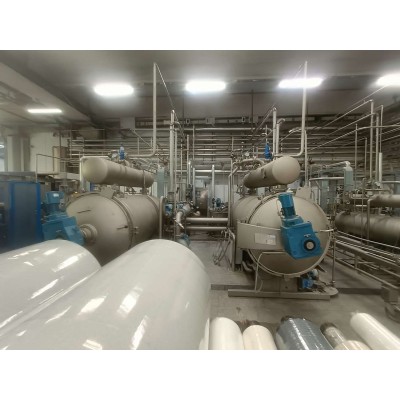

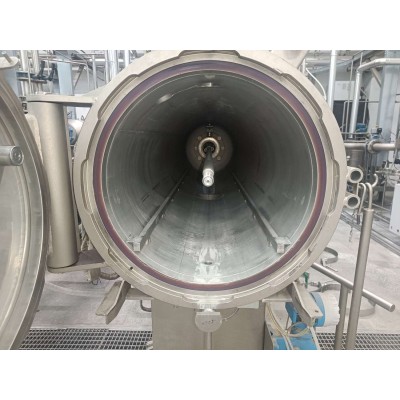

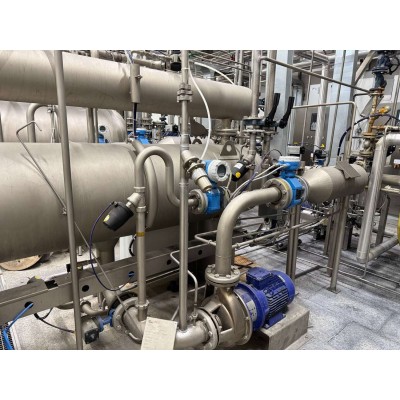

- Complete plant for HT open-width beam dyeing of woven fabrics

- Number of beam dyeing machines: 4

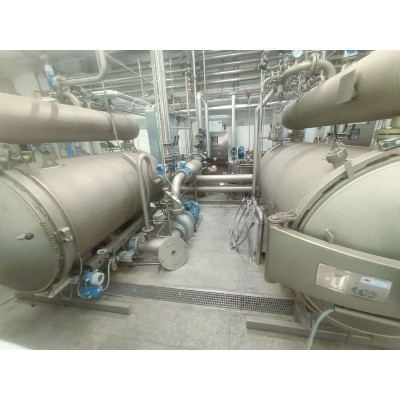

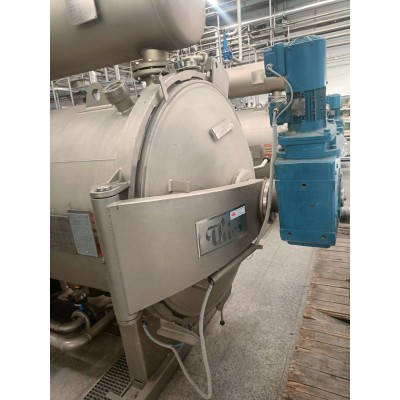

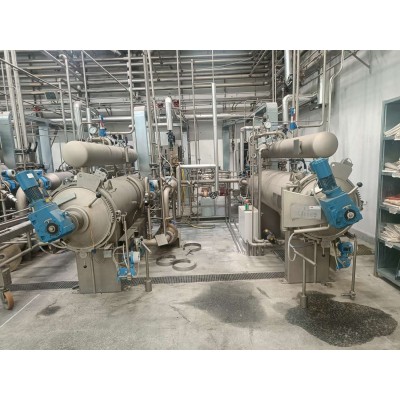

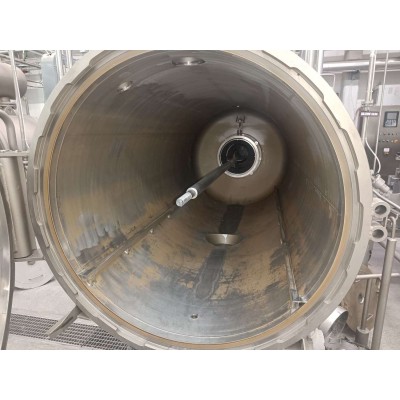

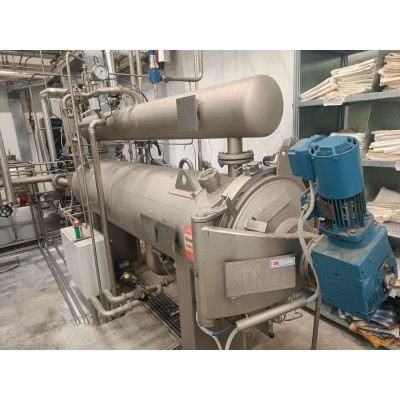

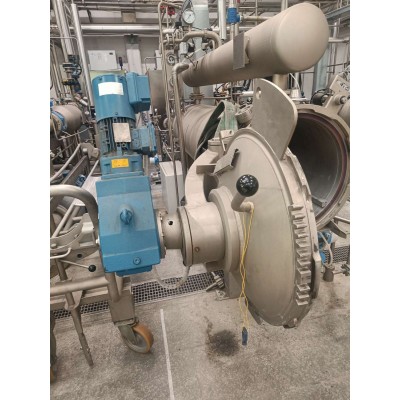

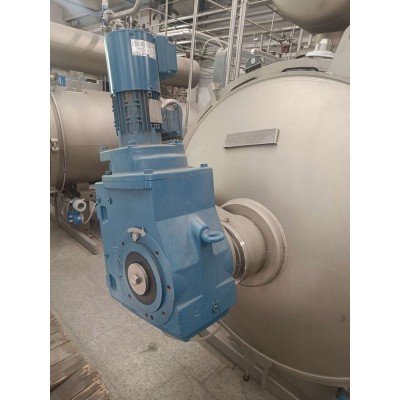

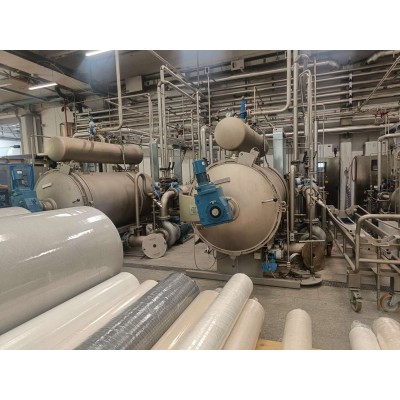

- N. 2 THIES HT BEAM TYPE 600/1X2000 machines, capacity approx. 50 kg each

- N. 2 THIES HT BEAM TYPE 1150/1X2000 machines, capacity approx. 300 kg each

- Beam length: 2200 mm

- Useful fabric width: 2000 mm

- Maximum operating temperature: 140 °C

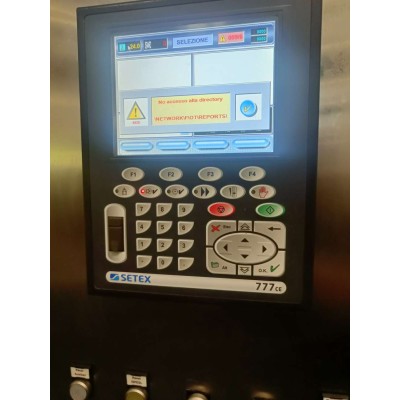

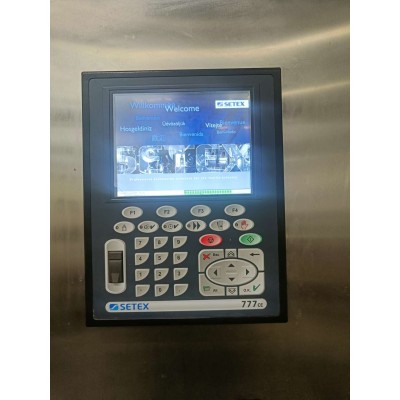

- SETEX 777 color controllers

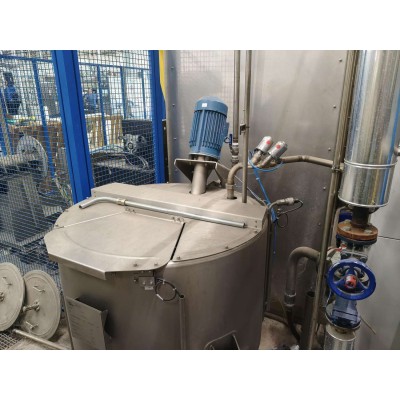

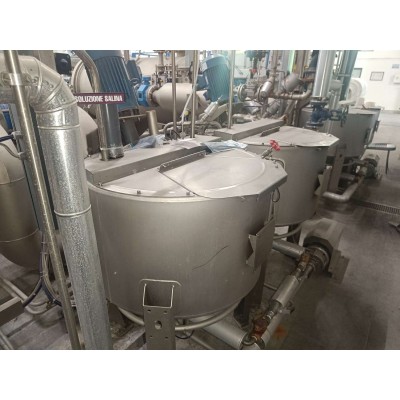

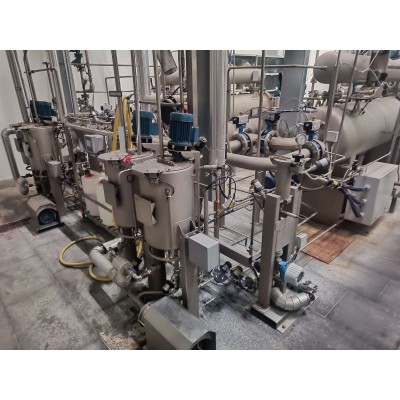

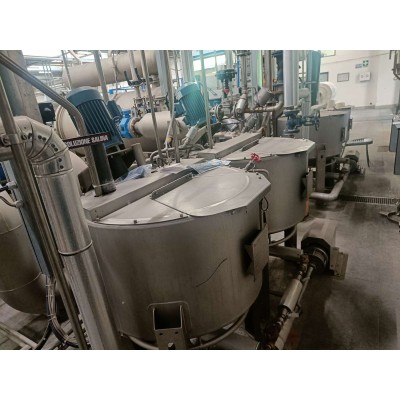

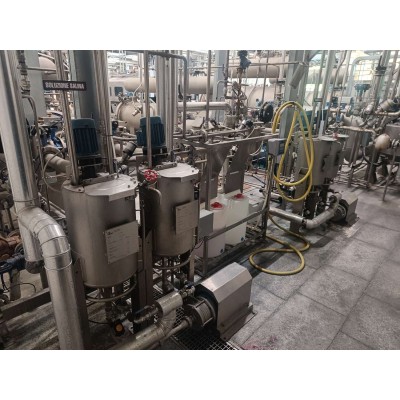

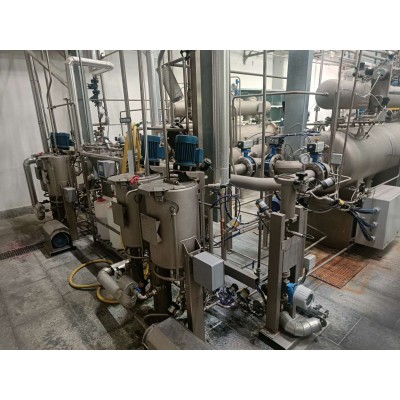

- Each machine equipped with N. 2 tanks with electric agitator for chemicals and dyes

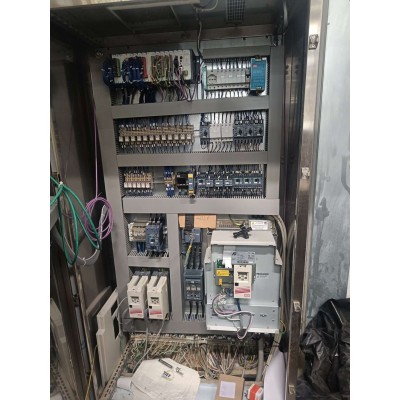

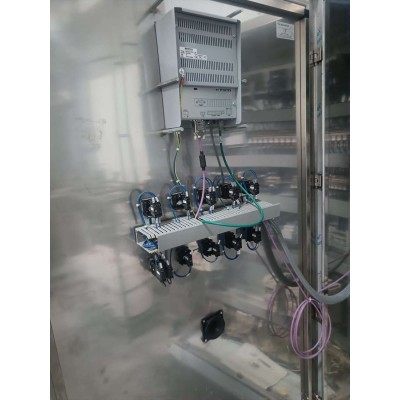

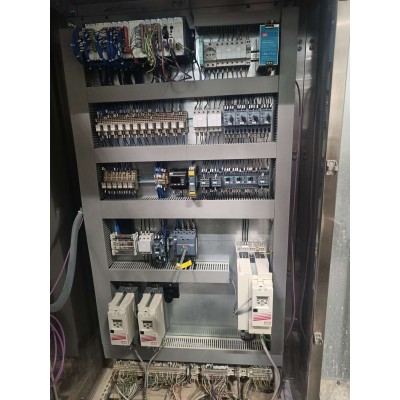

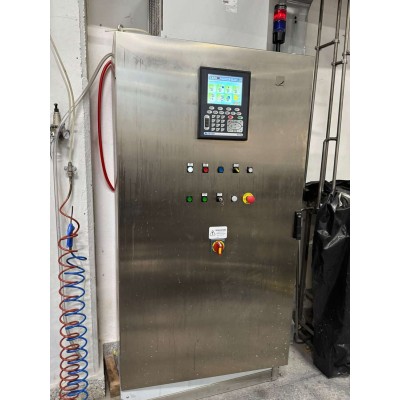

- N. 2 stainless steel electrical panels for each pair of machines

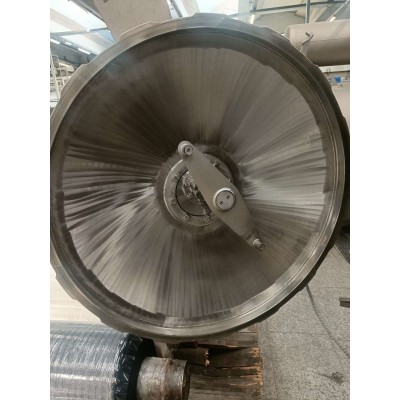

- Dye beams with diameters of 300 mm, 500 mm and 800 mm, with inside sleeves

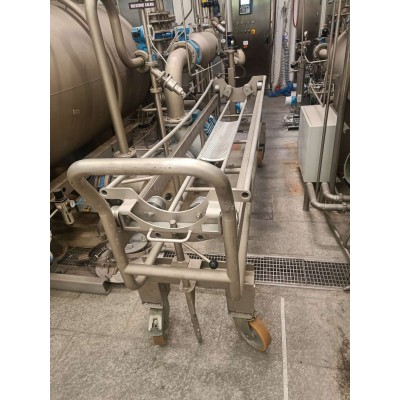

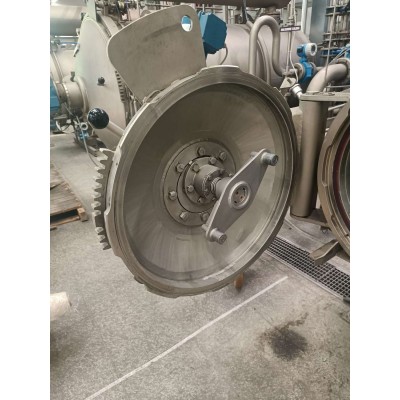

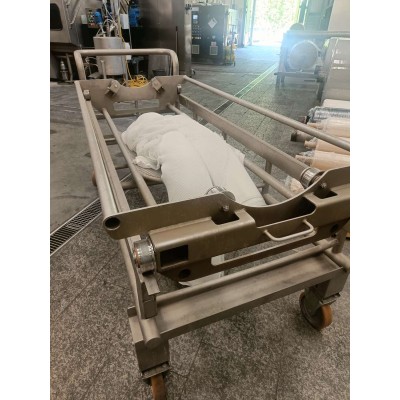

- Binding stars, external sleeves, dye beam carts and transport carts

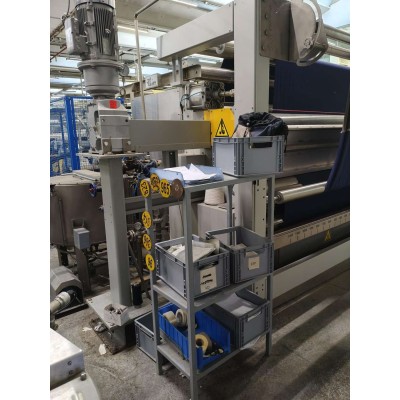

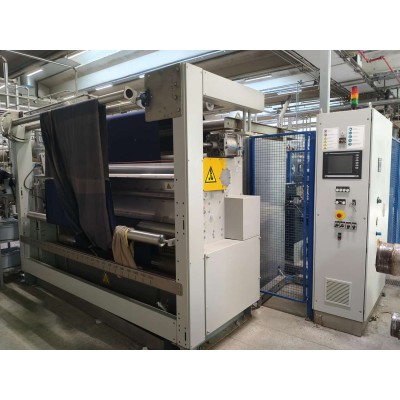

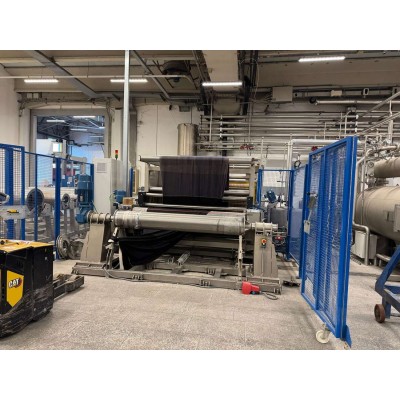

- N. 1 THIES HP-BATCHER for winding dry woven fabrics onto dye beams

- THIES HP-BATCHER maximum dry capacity: 500 kg

- THIES HP-BATCHER maximum fabric width: 2000 mm

- Maximum entry batch diameter: 1350 mm

- Speed up to 80 m/min

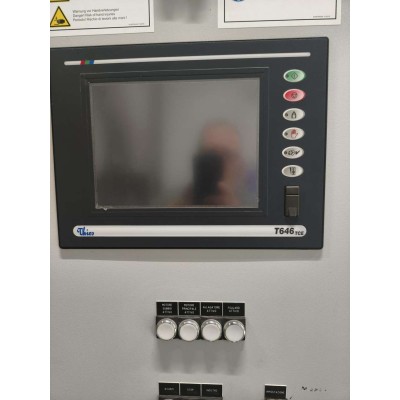

- THIES HP-BATCHER controlled by PLC with touchscreen terminal and SETEX T646 controller

- Padder THIES HP-BATCHER with hot-water tank for fabric wetting

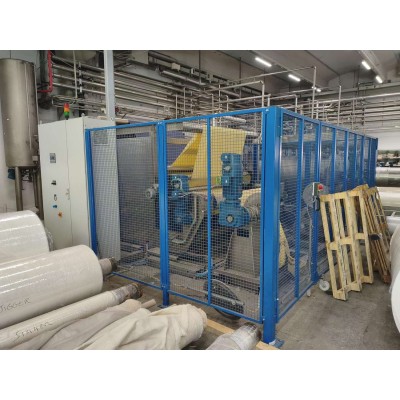

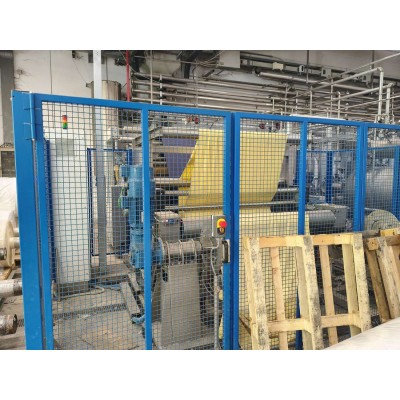

- THIES safety package with safety fence and light barriers

- The complete plant is sold as one lot

- Machine condition: excellent, like new

You can see the videos of the plant at the following links on YouTube: https://www.youtube.com/watch?v=UIlB1iEcB9Q
