Ref.434 - Whole cone yarn high temperature HT dyeing plant FLAINOX for polyester, cotton and acrylic

Ref.434 - Whole cone yarn high temperature HT dyeing plant FLAINOX for polyester, cotton and acrylic

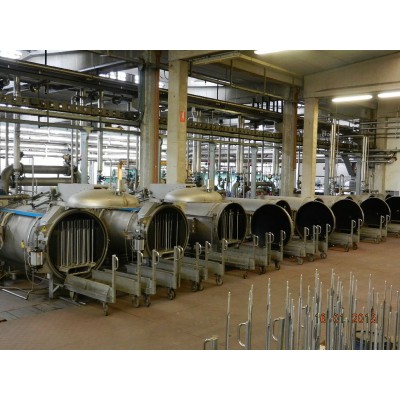

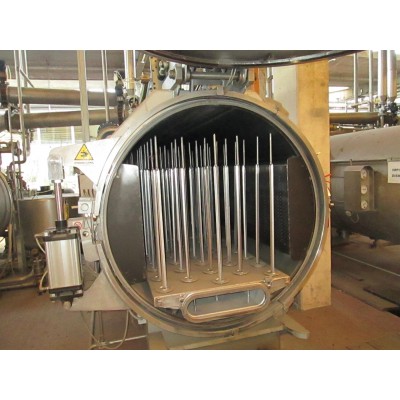

Horizontal pressurized machines for bleaching/dyeing in high temperature (HT):
- N. 1 FLAINOX ATR/OR/HT 100KGS, Year 1994
- N. 1 FLAINOX ATR/OR/HT 250KGS, Year 1988
- N. 2 FLAINOX ATR/OR/HT 600KGS, Year 1988. These two machines can work coupled, for a total of 1.200 Kg.
- N. 2 FLAINOX ATR/OR/HT 600KGS, Year 1994. These two machines can work coupled, for a total of 1.200 Kg.
- N. 2 FLAINOX ATR/OR/HT 600KGS, Year 2001. These two machines can work coupled, for a total of 1.200 Kg.

Circulation pumps:
- pumps controlled by inverter
- they are bi-directional turbo-propeller axial pumps
- reversible pumps
- changing direction automatically with that of the motor and therefore does not require a reversing valve
- completely constructed in stainless steel AISI 316/L

Other machines and equipments:

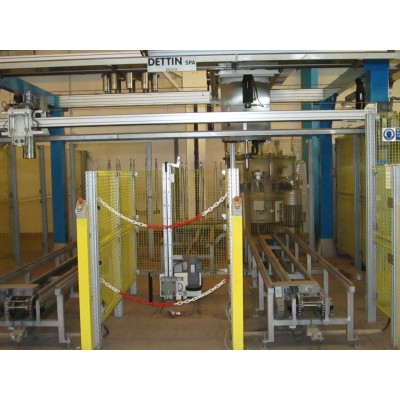

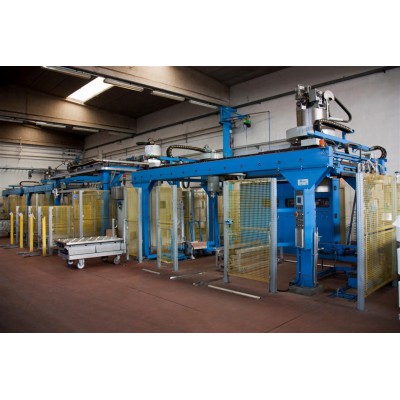

- Load cone robot GALVANIN RBT CRG, Year 1991
- Automatic hydroeextractor DETTIN DT40, Year 2002
- Automatic hydroextractor GALVANIN RBT CSR, Year 2002
- Dryer DETTIN AR22.75, Year 2003
- Dryer DETTIN AR22.75, Year 2003
- Plant supplied with total of N.53 trucks

Approximate production capacity per day:
- 15 ton/day for polyester
- 10 ton/day for cotton
- 18 ton/day for acrylic
